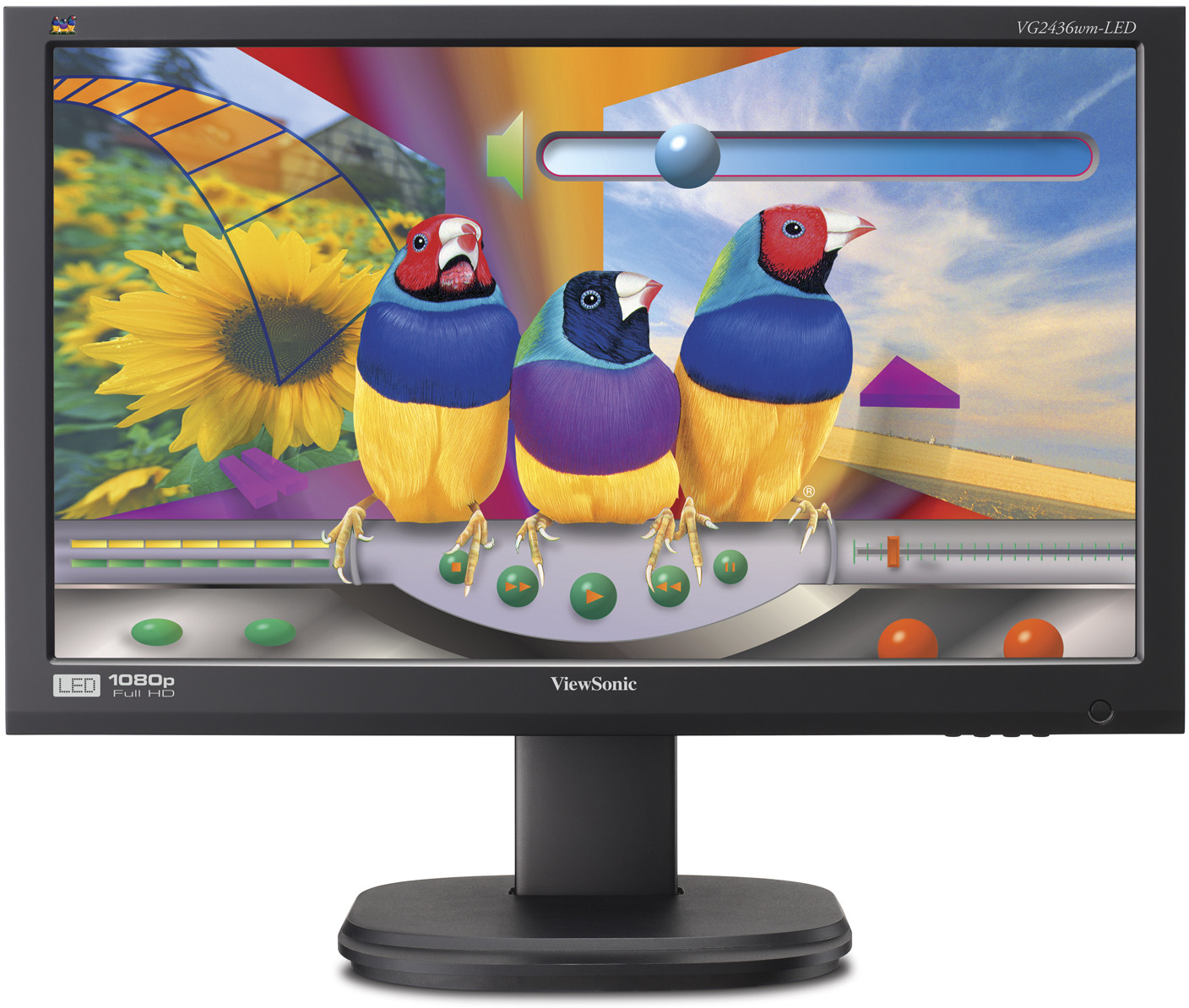

ViewSonic VG2436wm-LED 60cm/23.6" WIDESCREEN LED MONITOR

LCD

Rapport de contraste:	1000:1
Angles de vue:	170° (H), 160° (V)
Résolution optimale:	1920×1080
Temps de réponse:	5ms (typical)
Source lumière:	30,000 Hours (Typ.)
Surface panneau:	Anti-Glare, Hard coating (3H)
Pas de pixel:	0.2715 mm x 0.2715 mm
Taille:	60cm/23.6”wide Colour TFT Active Matrix LCD aspect ratio
Luminosité:	300 cd/㎡ (typical)
Rapport de contraste dynamique:	20,000,000:1

COMPATIBILITÉ

Ordinateur: VGA up to 1920x1080 Non Interlaced

Mac®: 1920x1080 Non Interlaced
DIMENSIONS (MM)

Physique (LxHxP): 566.25mm (W) x 433.7 mm (H) x 238.8mm (D)
ENTRéE

Synchronisation: H/V separated (TTL), composite sync-on-green

Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Fréquence: 24–83kHz / 50–75Hz
CONNECTEURS

Analogique: 1×15 pin mini D-sub

Numérique: DVI

Alimentation: 3-pin plug (CEE22)

Audio: 1 x 3.5mm
ALIMENTATION

Tension: AC 100-240V (Universal); 50/60Hz

Consommation: 28 W (typical)

Mode Economie (W): ≦0.1W

COMMANDES

De base:	[1], [2], power button, Down[▼], Up[▲]
OnView®:	Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory Recall

MONTAGE VESA™

100mm × 100mm
ERGONOMIE

Inclinaison: 20 ~ -5 degrees

Rotation horizontale: 360 degrees

Réglage de la hauteur: 0 ~ 135 mm

Rotation verticale: 90 degrees
POIDS

Net: 5.4 Kg (11.9lbs)
CONDITIONS D'EXPLOITATION

Humidité: 20 - 90 (%)

Température: 0 - 40 (°C) / 32 - 104 (°F)

Ordinateur:	VGA up to 1920x1080 Non Interlaced
Mac®:	1920x1080 Non Interlaced

Synchronisation:	H/V separated (TTL), composite sync-on-green
Analogique:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Fréquence:	24–83kHz / 50–75Hz

Humidité:	20 - 90 (%)
Température:	0 - 40 (°C) / 32 - 104 (°F)
