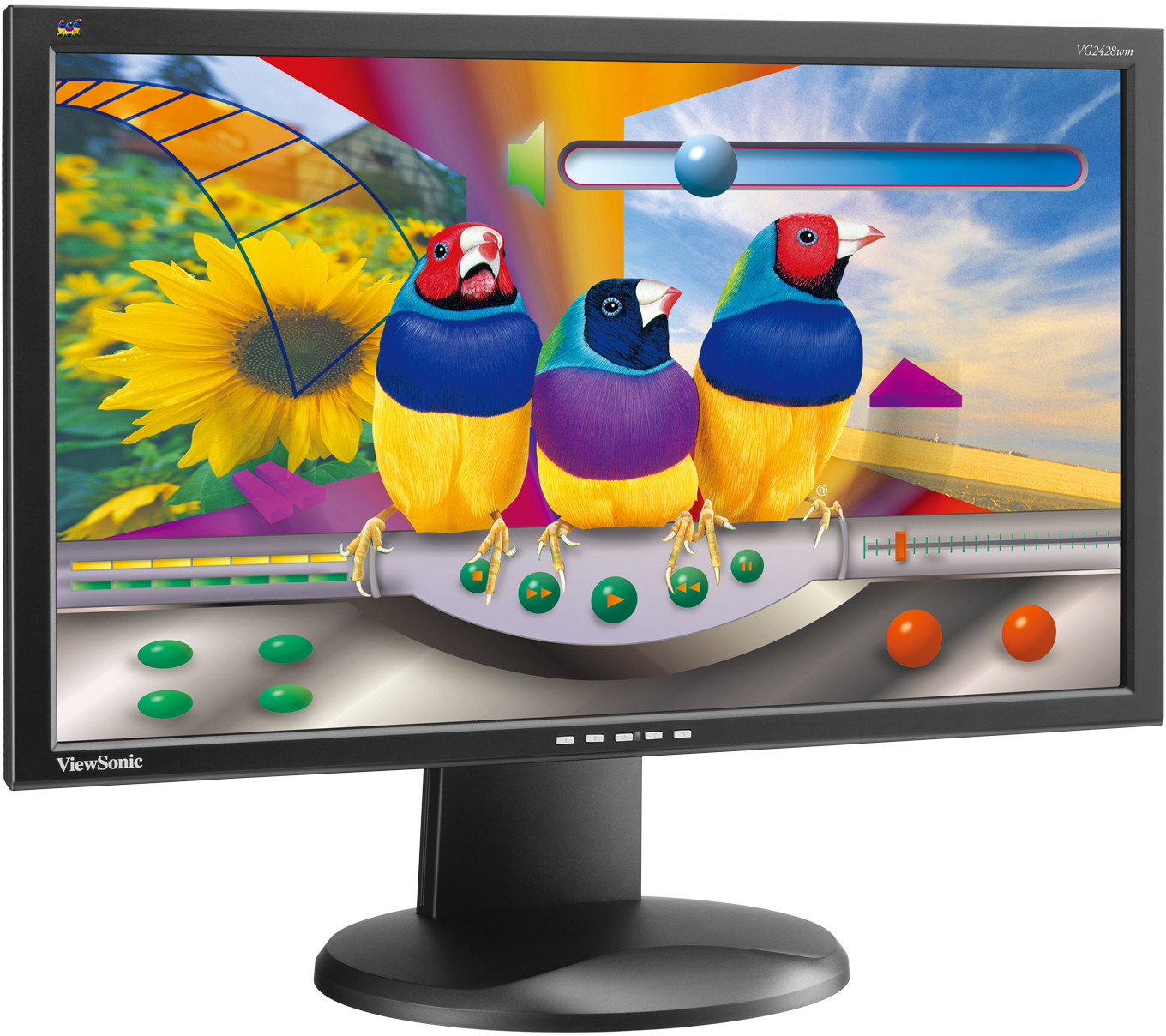

ViewSonic VG2428wm 24" (23.6"/60cm VIEWABLE) WIDESCREEN LCD WITH FULL HD RESOLUTION

LCD

Rapport de contraste:	1000:1(typical); 100,000:1 dynamic
Angles de vue:	170° (H), 160° (V)
Zone d'affichage:	521mm (H) x 293mm (V)
Résolution optimale:	1920×1080
Temps de réponse:	5ms(typical)
Source lumière:	50,000 hrs(typical)
Surface panneau:	Anti-Glare
Pas de pixel:	0.2715mm(H)×0.2715mm(V)
Prise en charge des couleurs:	16.7 M(6-bits + Hi FRC)
Taille:	23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Luminosité:	300 cd/m² (typical)

COMPATIBILITÉ

Ordinateur: VGA up to 1920×1080 non-interlaced

Mac®: Power Mac, up to 1920×1080
DIMENSIONS (MM)

Physique avec support: 564mmx442mmx250mm(22.2"x17.4"x9.8")

Physique sans support: 564mmx335mmx67mm(22.2"x13.2"x2.6")
CONTENU DE L'EMBALLAGE

DVI-D Cable, Power Cable, Audio cable, USB cable
ENTRéE

Synchronisation: H/V Separated

Numérique: DVI-D(TMDS, 100ohms)

Analogique: RGB Analog (75 ohms, 0.7/1.0 Vp-p)

Fréquence: Fh: 22-82kHz, Fv: 50-75Hz
CONNECTEURS

Analogique: 15 pin mini D-sub×1

Numérique: DVI-D

USB: down stream x2 / up stream x1

Audio: 3.5 mm Audio in

Alimentation: Built-in power Adapter, 3-Pin plug
ALIMENTATION

Tension: AC 100-240V(Universal); 50/60Hz(Switch)

Consommation: 45(Typical)

Mode Eco: Optimize 31W (typ.) / conserve 26W (typ.)

Mode Economie (W): ≦0.5W

COMMANDES

De base:	Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®:	Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute, Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user colour [R, G, B] Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, memory recall

GESTION ALIMENTATION

TCO 5.0, ENERGY STAR®
MONTAGE MURAL

VESA® 100mmx100mm
ERGONOMIE

Inclinaison: 20˚~-5˚

Rotation horizontale: 360˚(180 ˚left / 180 ˚right)

Réglage de la hauteur: 0~135mm

Rotation verticale: 0˚~90˚ clock wise
AUDIO

Haut-parleurs: 2x2 watt
POIDS

Brut: 9.6 kg(21.2 lb)

Net: 7 kg(15.4 lb)
CONDITIONS D'EXPLOITATION

Humidité: 10-90%(Non condensed)

Température: 32-104°F(0-40°C)

Ordinateur:	VGA up to 1920×1080 non-interlaced
Mac®:	Power Mac, up to 1920×1080

Physique avec support:	564mmx442mmx250mm(22.2"x17.4"x9.8")
Physique sans support:	564mmx335mmx67mm(22.2"x13.2"x2.6")

Analogique:	15 pin mini D-sub×1
Numérique:	DVI-D
USB:	down stream x2 / up stream x1
Audio:	3.5 mm Audio in
Alimentation:	Built-in power Adapter, 3-Pin plug

Humidité:	10-90%(Non condensed)
Température:	32-104°F(0-40°C)

Brut:	9.6 kg(21.2 lb)
Net:	7 kg(15.4 lb)
