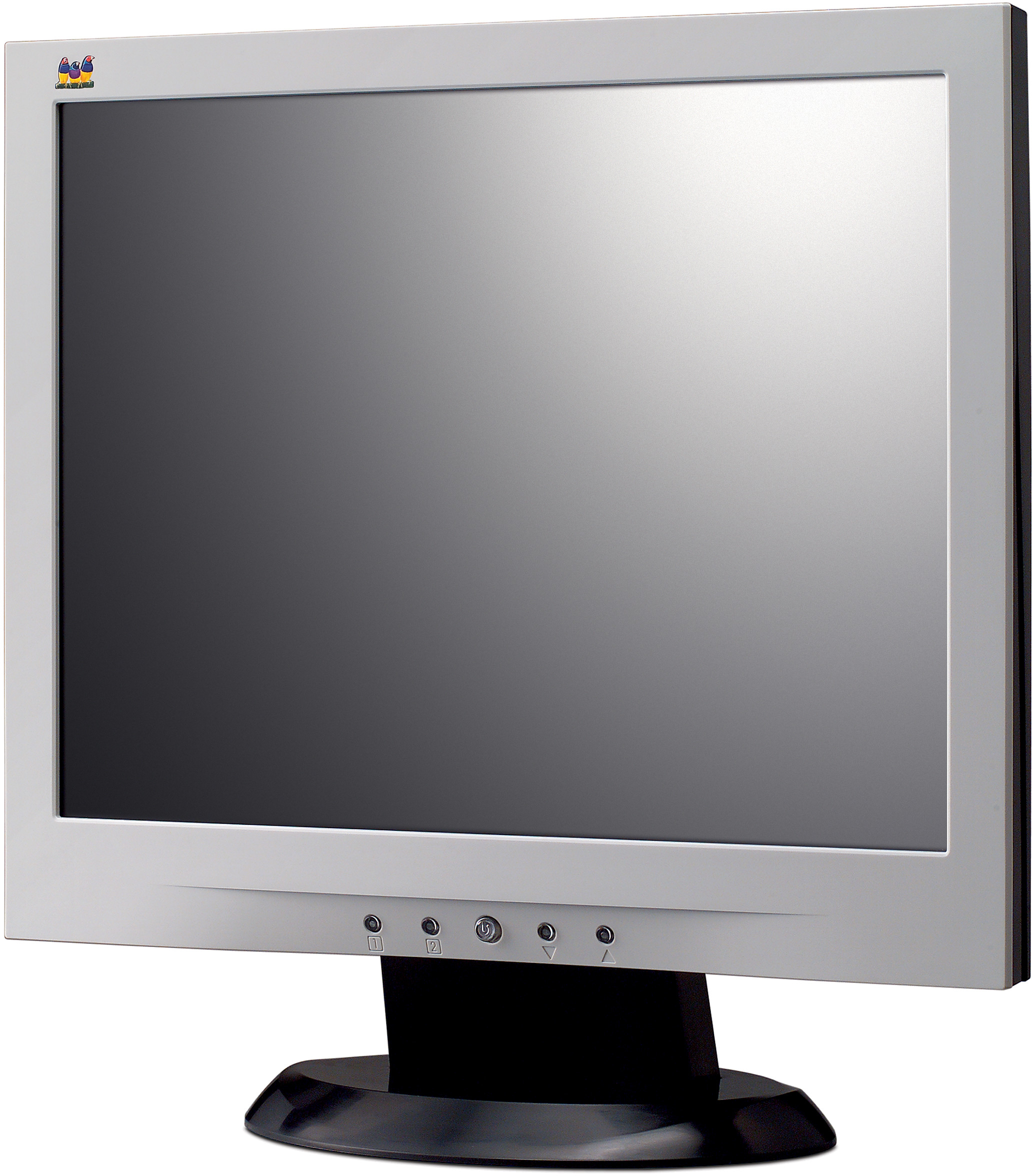

ViewSonic VA503m 38cm / 15" LCD MONITOR WITH MULTIMEDIA

LCD

Type:	38cm / 15" TN colour TFT active matrix XGA LCD
Rapport de contraste:	450:1 (typ.)
Angles de vue:	120° horizontal, 100° vertical (at 10:1)
Luminosité:	250cd/m² (typ.)
Zone d'affichage:	30.4cm horizontal x 22.8cm vertical; 38.1cm diagonal
Résolution optimale:	1024 x 768
Temps de réponse:	16ms (off-on-off) (typ.)
Source lumière:	Long life, 30000 hrs. (typ.)
Surface panneau:	Anti-glare
Pas de pixel:	0.297mm
Prise en charge des couleurs:	16.2M colours (6-bit + 2-bit FRC)
Horloge pixel:	85MHz

COMPATIBILITÉ

Ordinateur: VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)

Mac®: Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended)
DIMENSIONS (MM)

Physique avec support: 344 x 348 x 147

Physique sans support: 344 x 290 x 54
CONTENU DE L'EMBALLAGE

LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
AUDIO

Haut-parleurs: 2 x 1 Watt integrated invisible stereo speakers
CONNECTEURS

Analogique: 15-pin mini D-sub (attached cable)

Alimentation: 3-pin AC plug (CEE22)

Audio (entrée/sortie): 3.5mm stereo audio line-in
ALIMENTATION

Tension: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consommation: <23 watt (max.), <1 watt in power save mode

COMMANDES

De base:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

CONDITIONS D'EXPLOITATION

Température: 0°C – 40°C

Humidité: 20% – 90% (non-condensing)
POIDS

Net avec support: 2.7kg
ENTRéE VIDéO

Fréquence: Fh: 30 – 82kHz
Fv: 50 – 85Hz

Synchronisation: H/V separated (TTL)

Analogique: RGB analogue (0.7 Vp-p, 75 ohm)
GESTION ALIMENTATION

Meets TCO’99 and Energy Star standards
SÉCURITÉ

Kensington® security port
MONTAGE MURAL

VESA FDMI 75mm x 75mm
ERGONOMIE

Inclinaison: Down 5°, Up 20°
