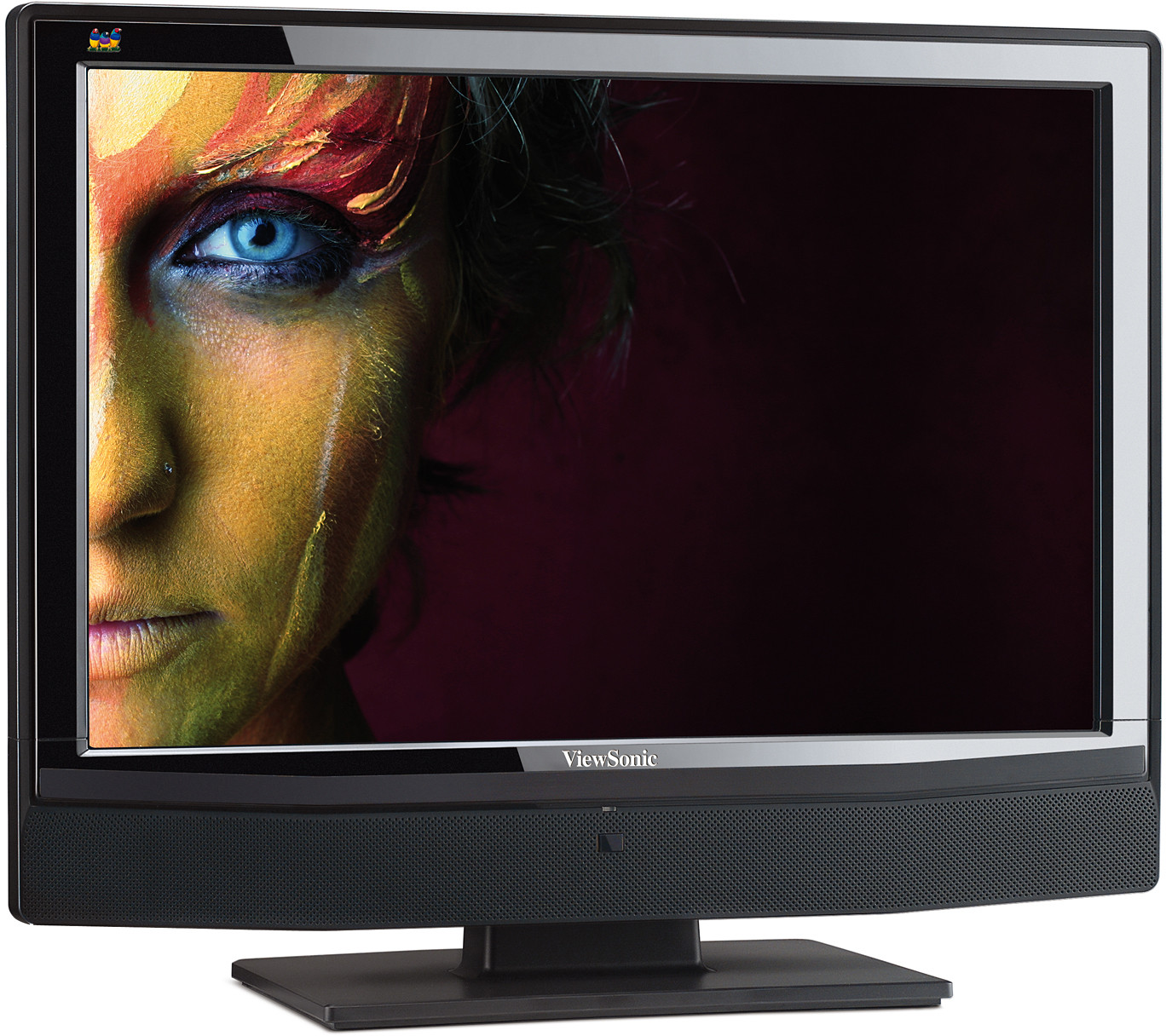

ViewSonic NX2240w 22" WIDESCREEN HIGH DEFINITION LCD TV

COLORS

Black

LCD

Type:	22“ TN colour TFT active matrix WSXGA + LCD
Rapport de contraste:	1000:1 (typ.)
Angles de vue:	170° horizontal, 160° vertical (at 10:1)
Luminosité:	300 cd/m² (typ.)
Zone d'affichage:	47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Temps de réponse:	5ms (grey-to-grey)
Rapport largeur/hauteur:	16:10
Surface panneau:	Anti-glare 3H

COMPATIBILITÉ

Ordinateur: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred

Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
DIMENSIONS (MM)

Larg x prof x htr mm: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging)

CONTENU DE L'EMBALLAGE

LCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)

AUDIO

Haut-parleurs: 2 x 2 Watt

CONNECTEURS

Numérique:	1 x HDMI
Entrée S-vidéo:	1 x 4-pin mini DIN jack
Casque:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART2 (CVBS, RGB, Audio)
Syntoniseur:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub
Alimentation:	3-pin plug (CEE22)
Vidéo composite:	1 x RCA (CVBS)
Vidéo en composante:	Via 15-pin mini D-sub to 3 x RCA component video adapter

ALIMENTATION

Tension: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Consommation: <75 watt (max.)

COMMANDES

De base:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset)

CONDITIONS D'EXPLOITATION

Température: 32-104ºF (0-40ºC)

Humidité: 10% - 85% (non-condensation)
POIDS

Net: 6.2kg (with base) 5.5kg (without base)

Brut: 8.7kg
TELETEXT

Yes (10 pages)
ENTRéE VIDéO

PAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

Ordinateur:	Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®:	Power Mac™ up to 1680 x 1050 @ 60Hz preferred

Tension:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Consommation:	<75 watt (max.)

Température:	32-104ºF (0-40ºC)
Humidité:	10% - 85% (non-condensation)

Net:	6.2kg (with base) 5.5kg (without base)
Brut:	8.7kg
