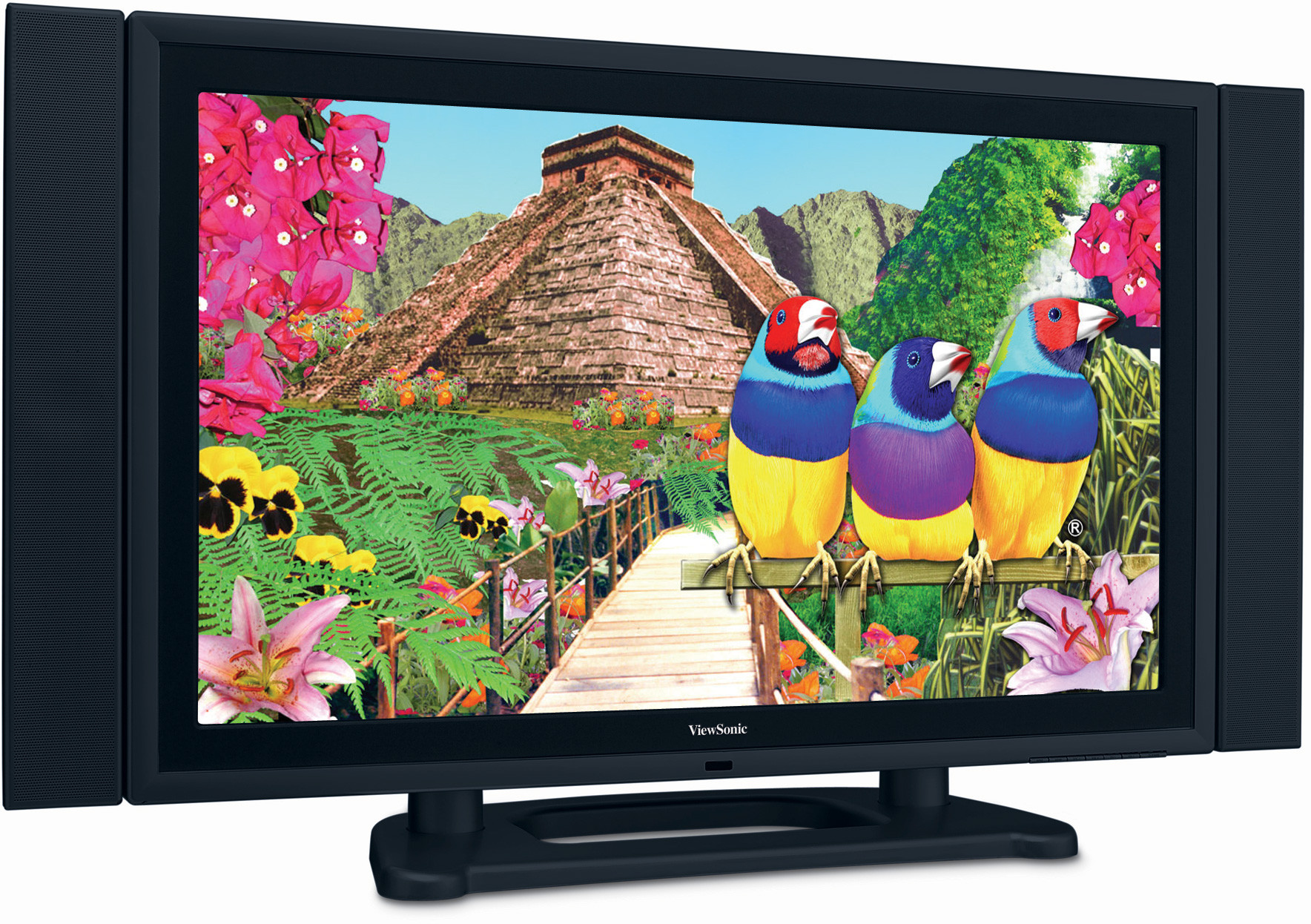

ViewSonic N4200w 107cm / 42" WIDE-SCREEN HD-READY LCD TV WITH DNX™

LCD

Type:	107cm / 42" (42.02" viewable) color TFT active matrix, wide LCD
Rapport de contraste:	1600:1 (typ.)
Angles de vue:	178° horizontal, 178° vertical (at 10:1)
Luminosité:	500cd/m² (typ.)
Surface vitrée:	Anti-glare 3H
Zone d'affichage:	93.0cm (horizontal) x 52.3cm (vertical), 107cm diagonal
Temps de réponse:	8ms (grey-to-grey)
Rapport largeur/hauteur:	16:9

COMPATIBILITÉ

Ordinateur: 1360x768 (preferred), 1024x768, 1280x768

Mac®: Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720
DIMENSIONS (MM)

Larg x prof x htr mm: 1243 x 739 x 304 (with base)

1243 x 655 x 146 (without base)

1052 x 655 x 146 (without base/speakers)
CONTENU DE L'EMBALLAGE

LCD TV, power cables (Europe [Schuko]/UK), 1.5m RF cable, remote control, batteries, quick start guide, user guide (multi-language)
AUDIO

Haut-parleurs: 2x10-watt SRS TruSurround
ENTRéE

Entrée vidéo: PAL (B/G, D/K, I), SECAM (L), NTSC³, SD (480i/p, 576i/p), HD (720p, 1080i)
SIGNAL D'ENTRéE

Comp. TV/Vidéo: 480i, 480p, 576p, 720p, 1080i

CONNECTEURS

Alimentation:	3-pin plug (CEE22)
Sortie audio:	1 x L/R RCA set 1 x SPDIF
Entrée vidéo composite:	1 x 4-pin mini DIN jack
Entrée vidéo composite:	1 x RCA set (YPbPr/YCbCr)
Entrée audio:	2 x L/R RCA set
Audio:	1 x RCA R/L Out
Casque:	1 x 3.5mm mini stereo jack
SCART:	2 x SCART² (SCART 1 [RGB In, S-video In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Sortie vidéo composite:	1 x RCA (CVBS)
Entrée numérique:	2 x HDMI (HDCP)
Syntoniseur (analogique):	1 x Coax RF (PAL/SECAM)

ALIMENTATION

Tension: AC 90-240V (universal), 50-60Hz

Consommation: 240W (typ)

COMMANDES

De base:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (Contrast, brightness, colour temperature [11000k, 9300k, 7500K], sharpness, flesh tone, white balance), TV Menu (Nicam, TV/CATV, channel edit, fine tune), Audio Menu (bass, treble, balance, sound effect), Setup Menu (view mode, sleep timer, blue screen, factory preset, language, OSD position, OSD transparency , OSD timeout), PIP/POP Menu (source, mode, size, position)

CONDITIONS D'EXPLOITATION

Température: 10% to 80% (non condensation)

Humidité: 10% to 80% (non condensation)
POIDS

Net: 33kg (with base), 30.4kg (without base), 28.4kg (without base/speakers)
MONTAGE MURAL

VESA® FDMI 200mm x 300mm, 200mm x 400mm, M6 screws
TELETEXT

Yes (1000 pages)

Ordinateur:	1360x768 (preferred), 1024x768, 1280x768
Mac®:	Power Mac™ G3/G4/G5 up to 1280x1024, 1280x720

Tension:	AC 90-240V (universal), 50-60Hz
Consommation:	240W (typ)

Température:	10% to 80% (non condensation)
Humidité:	10% to 80% (non condensation)
