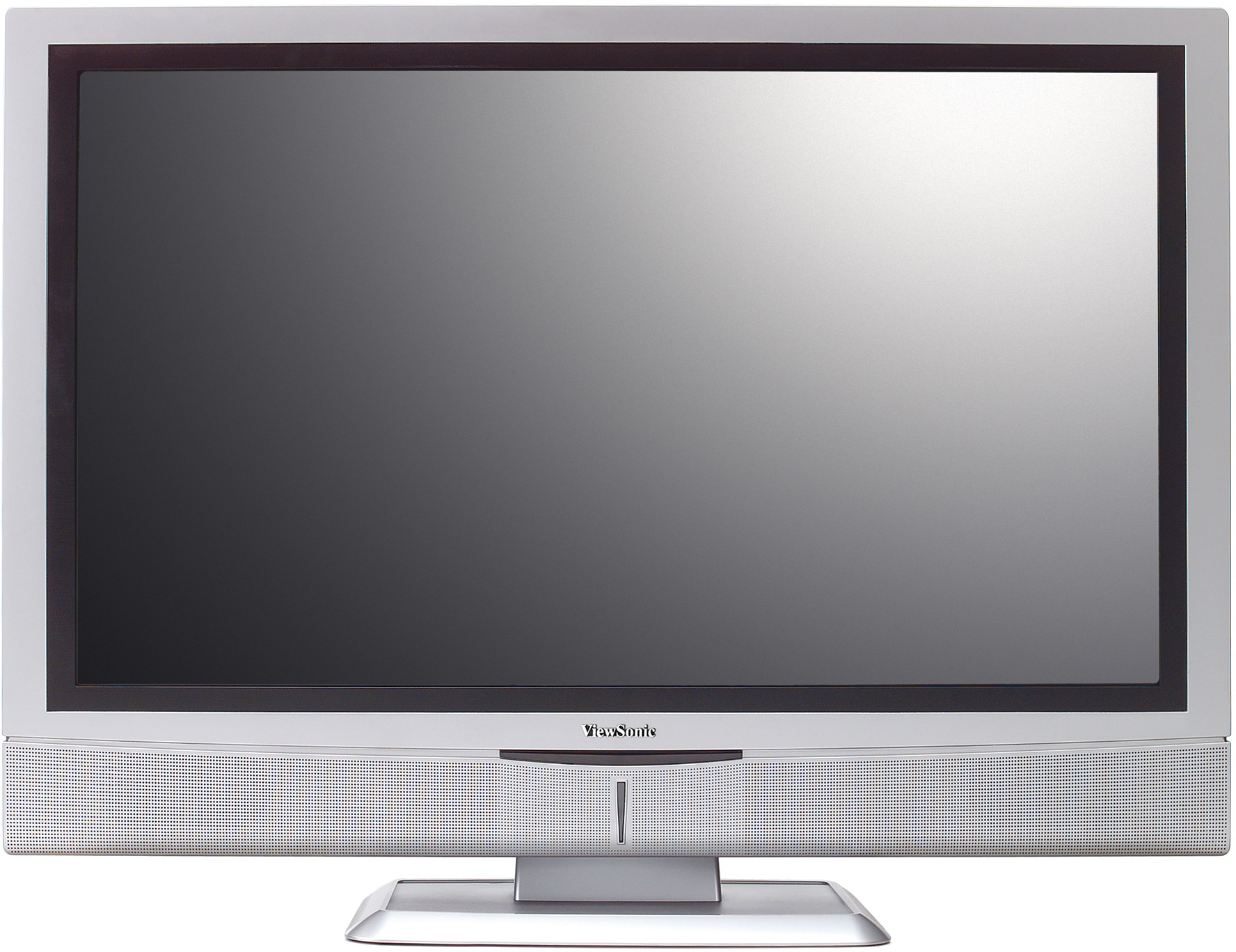

ViewSonic N3246w 32” WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)

LCD

Type:	32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Rapport de contraste:	1200:1 (typ.)
Angles de vue:	176° horizontal, 176° vertical (at 20:1)
Luminosité:	550cd/m² (typ.)
Zone d'affichage:	70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Temps de réponse:	8ms (grey-to-grey)
Rapport largeur/hauteur:	16:9 native
Surface panneau:	Anti-glare 3H

COMPATIBILITÉ

Ordinateur: Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS (MM)

Larg x prof x htr mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging)
CONTENU DE L'EMBALLAGE

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
AUDIO

Haut-parleurs: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTEURS

Sortie audio:	1 x L/R RCA set
Entrée audio:	1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC)
Casque:	1 x 3.5mm mini stereo jack
SCART:	2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Syntoniseur (analogique):	1 x Coax RF (PAL/SECAM)
Syntoniseur (numérique):	1 x Coax (DVB-T)
Vidéo numérique:	1 x HDMI (HDCP)
Vidéo en composante:	1 x RCA set (YPbPr/YCbCr)
PC-RGB:	1 x 15-pin mini D-sub
Fente carte PC:	1 x for digital pay card and service

ALIMENTATION

Tension: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Consommation: 180 watt (max.)

COMMANDES

De base:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock

CONDITIONS D'EXPLOITATION

Température: 0°C to 35°C

Humidité: 20% to 90% (non condensation)
POIDS

Net: 15.5kg (with base)

Brut: 18.0kg
MONTAGE MURAL

VESA FDMI 200mm x 200mm
ENTRéE VIDéO

PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
TELETEXT/MHEG5

Yes (100 pages)/Yes

Ordinateur:	Compatible from 640 x 480 up to 1360 x 768, 1360 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Tension:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consommation:	180 watt (max.)

Température:	0°C to 35°C
Humidité:	20% to 90% (non condensation)

Net:	15.5kg (with base)
Brut:	18.0kg
