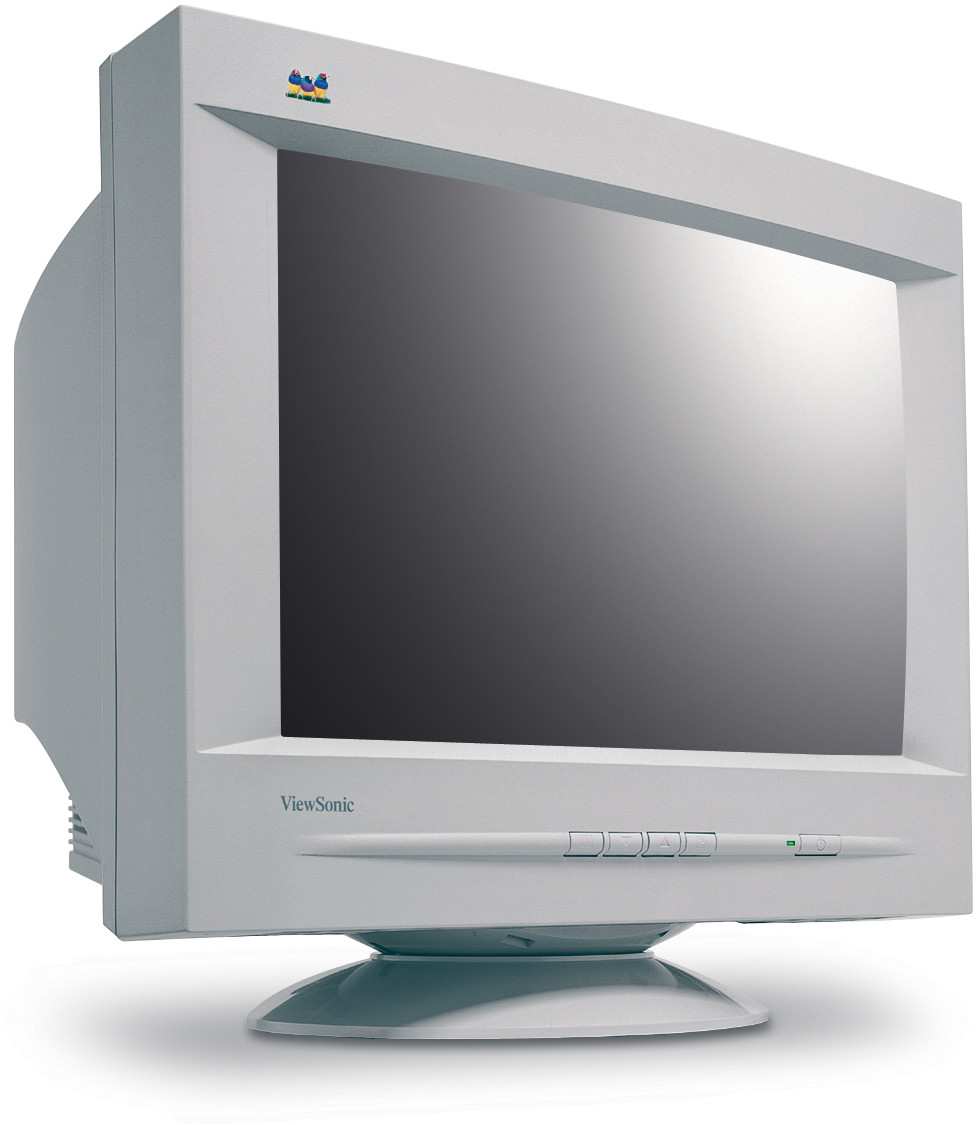

ViewSonic E70 CRT MONITOR 43 cm / 17" (16" VIEWABLE) MONITOR

COMPATIBILITÉ

Ordinateur: PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)

Mac®: Power Mac®
DIMENSIONS (MM)

Physique (LxHxP): 410mm (W) x 425mm (H) x 402mm (D)
SIGNAL D'ENTRéE

Fréquence: Fh: 30 - 70kHz,
Fv: 50 - 160Hz

Vidéo: RGB Analogue (0.7V/1.0Vp-p, 75 ohms)

Sync: H/V separated (TTL), composite
CONNECTEURS

Alimentation: 3-pin plug (IEC320)

Signal: 15 pin mini D-sub, attached cable
ALIMENTATION

Tension: AC 90 - 264V, 50/60Hz (auto switch)

Consommation: 75W (typ.), < 2 watt in power save mode

COMMANDES

De base:	Power on/off, Key 1, Key 2, up, down
OSD:	Contrast, Brightness, zoom, H/V Size, H/V Position, Pin-balance, Pincushion, Parallel, Trapezoid, Rotation, moiré reduction, degauss, ViewMatch colour adjust (9300K, 6500K, 5000K, User), mode information (ViewMeter), language, memory recall

CONDITIONS D'EXPLOITATION

Température: 0°C to 40°C

Humidité: 5% to 95% (no condensation)
POIDS

Net: 14kg
ENTRéE VIDéO

Bande passante: 120MHz (Typical)
GESTION ALIMENTATION

Meets MPR II

CRT

Type:	43cm / 17" (16" diagonal viewable area), 90°deflection
Pas de masque:	0.27mm dot pitch
Phosphor:	RGB P22 medium/short persistence
Surface vitrée:	Anti-static, anti-glare, AR coat (TM=50%)

PLUG & PLAY

DDC1, DDC2B
MAUVAISE CONVERGENCE

0.25mm (max.) at centre
0.35mm (max.) at corner
ZONE D'AFFICHAGE

Réglage par défaut: 310mm (H) x 230mm (V) (typ.)

Balayage maximum: 325mm (H) x 243mm (V) (depending on signal timing used)

Ordinateur:	PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)
Mac®:	Power Mac®

Alimentation:	3-pin plug (IEC320)
Signal:	15 pin mini D-sub, attached cable

Tension:	AC 90 - 264V, 50/60Hz (auto switch)
Consommation:	75W (typ.), < 2 watt in power save mode

Température:	0°C to 40°C
Humidité:	5% to 95% (no condensation)

Réglage par défaut:	310mm (H) x 230mm (V) (typ.)
Balayage maximum:	325mm (H) x 243mm (V) (depending on signal timing used)
