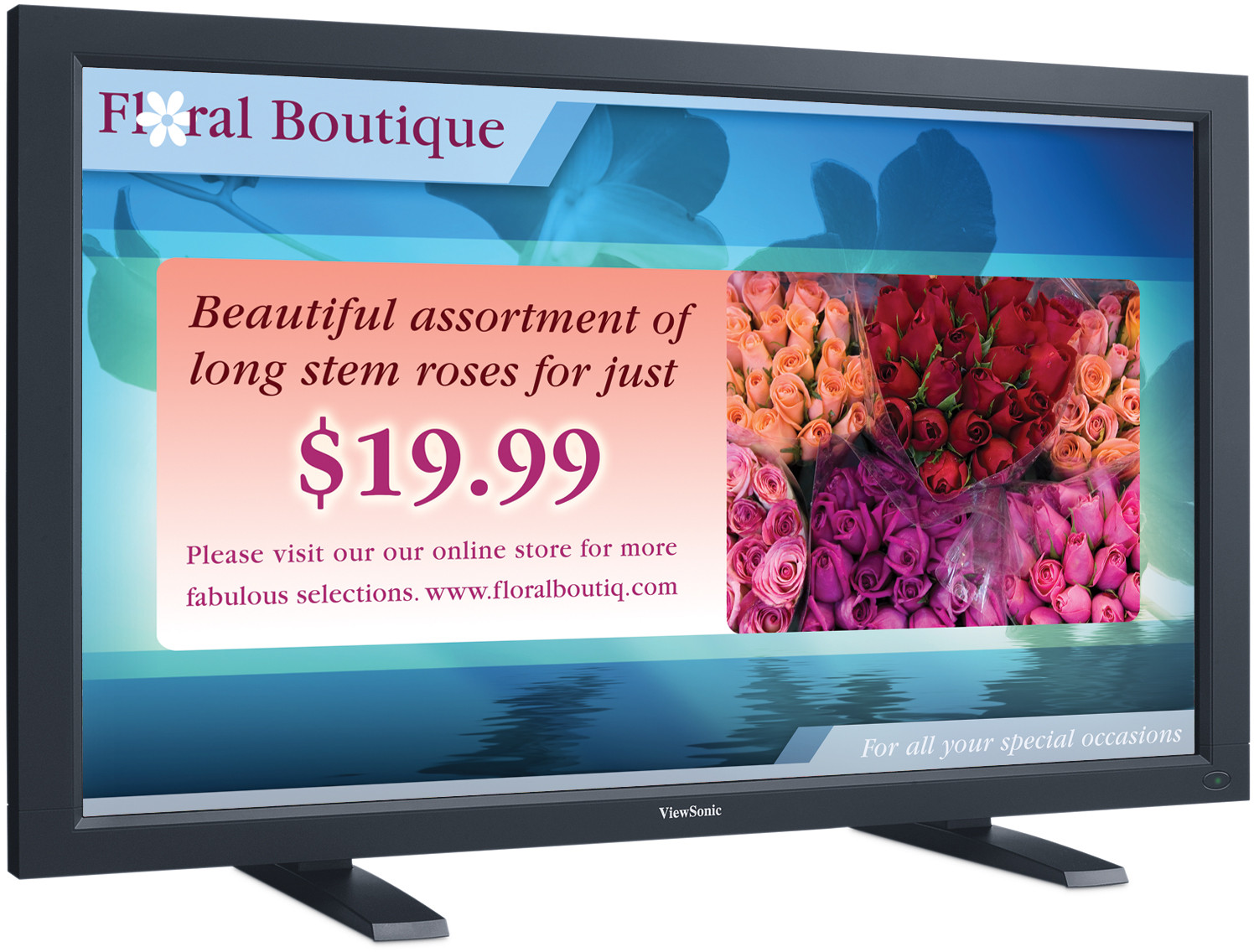

ViewSonic CD4220 High impact digital signage

COLORS

Black

LCD

Type:	107 cm / 42" wide colour TFT active matrix
Rapport de contraste:	1500:1 (typ.)
Angles de vue:	178° horizontal, 178° vertical (at 10:1)
Luminosité:	500cd/m²
Zone d'affichage:	93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Temps de réponse:	8 ms (Grey-to-Grey)
Rapport largeur/hauteur:	16:9
Résolution native:	1366 x 768
Surface panneau:	Anti-glare, hard coating (2H)

DIMENSIONS (MM)

Physique (LxHxP): 1022 x 612 x 127 mm (without stand)
CONTENU DE L'EMBALLAGE

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO

Signal: 2 x 7 watt with SRS TruSurround¹

CONNECTEURS

Sortie audio:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Entrée vidéo composite:	1 x RCA (CVBS) 1 x BNC (CVBS)
Entrée vidéo composite:	3 x BNC (YPbPr/YCbCr)
Entrée audio:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Entrée analogique:	1 x 15-pin mini D-Sub (detachable cable)
Sortie analogique:	1 x 15-pin mini D-Sub (detachable cable)
Sortie vidéo composite:	1 x BNC (CVBS)
Alimentation:	1 x 3-pin plug
Commande/Sortie Net:	1 x 9-pin mini D-sub RS-232
Commande/Entrée Net:	1 x 9-pin mini D-sub RS-232
Entrée numérique:	1 x HDMI (with HDCP)

ALIMENTATION

Tension: AC 100–240V (universal), 50/60Hz

Consommation: <246 watt, <5 watt in power save mode

COMMANDES

De base:

Power, menu, exit, source, up/down, volume, mute, main power switch

OSD:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset)

CONDITIONS D'EXPLOITATION

Température: 0°C–40°C landscape mode, 5°C–35°C portrait mode

Humidité: 20%–80% (non-condensing)
POIDS

Net: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)

Brut: 34.7kg

ENTRéE VIDéO

Fréquence:	Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Synchronisation:	H/V separate (TTL), composite, sync on green
Analogique:	RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
Numérique:	HDMI (HDCP enabled; TMDS, 100 ohm)

MONTAGE MURAL

VESA FDMI 400mm x 200mm, M6 screws

Tension:	AC 100–240V (universal), 50/60Hz
Consommation:	<246 watt, <5 watt in power save mode

Température:	0°C–40°C landscape mode, 5°C–35°C portrait mode
Humidité:	20%–80% (non-condensing)

Net:	29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Brut:	34.7kg
