LCD Display
VG2433mh
Key Features
- Full HD 1080p resolution
- HDMI, VGA and DVI inputs
- Flicker-Free and Blue Light Filter
- Eco-mode
- Dual integrated speakers
Product Description

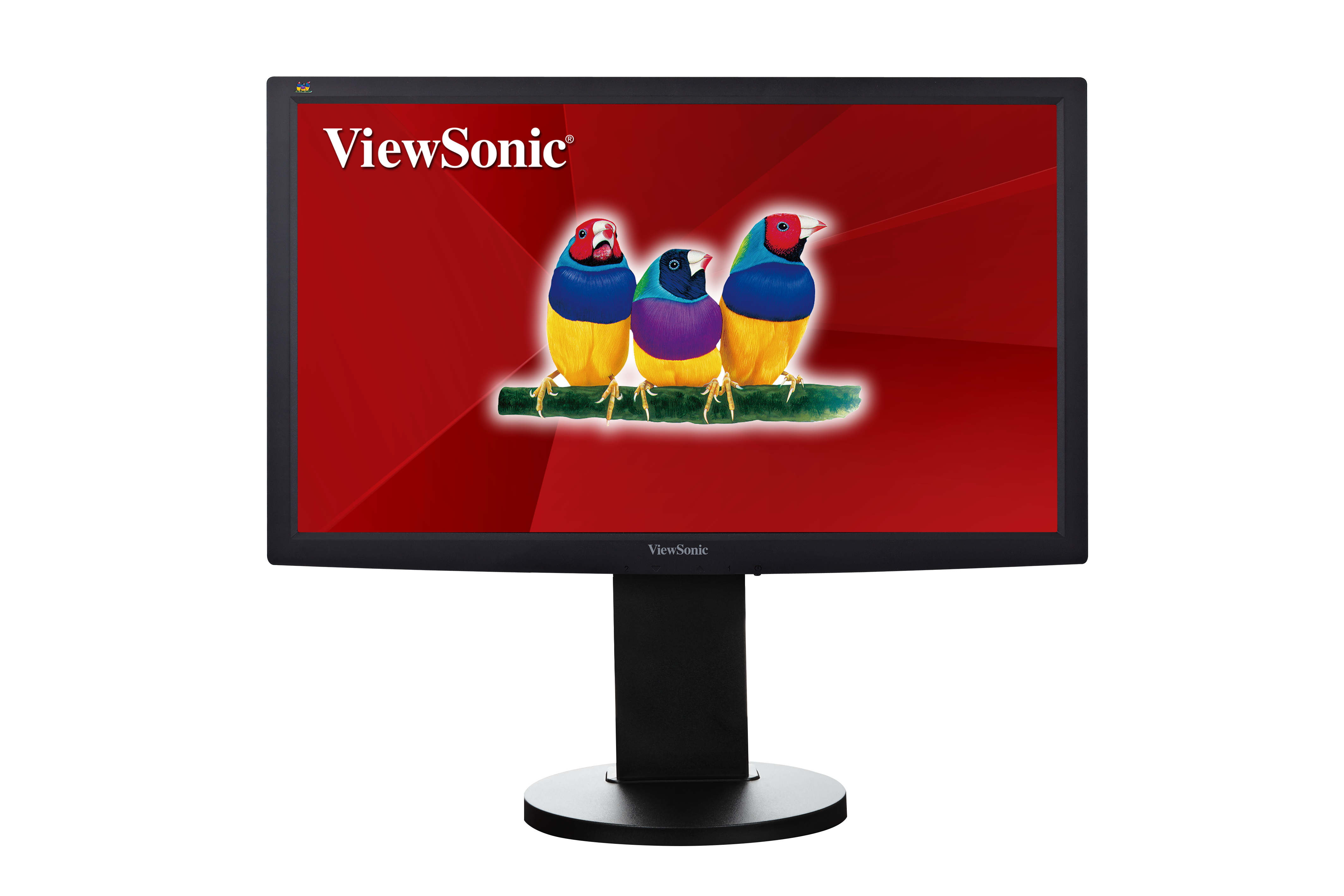

The ViewSonic VG2433mh is a 24” (23.6” viewable) Full HD LED display with 1920 x 1080 native resolution and full ergonomics with pivot, swivel, tilt and height adjustments. Equipped with HDMI, VGA and DVI inputs and dual stereo speakers, it offers flexible connection offices options for all your HD devices. Plus, with built-in Eco- mode, the VG2433mh will cut down on power consumption for a lower total cost of ownership.
Visit Us
- www.viewsonic.com
-
DISPLAY
Monitor Size: 24” W (23.6” Viewable) Panel Technology: TN Type, a-si TFT Active Matrix LCD Resolution: Full HD 1920 x 1080 Display Area: 521.28mm (H) x 293.22mm (V) Aspect Ratio: 16:9 Brightness: 300 cd/m2 (Typ) Contrast Ratio: 1000:1 (Typ) Dynamic Contrast Ratio: 50,000,000:1 Viewing Angle: 170 degrees / 160 degrees (Typ) Refresh Rate (Hz): 75 (Max)[1] Response Time: GTG(AVR):5ms (typ) Backlight: 1 WLED light bar Backlight Life: 30,000 Hrs (Min) Colours: 16.7M colors (6-bit+A-FRC) Colour Gamut: 72% of NTSC (Typ) Panel Surface: Anti-Glare type,Hard-coating (3H), Haze 25% Pixel Size: 0.2715mm (H) x 0.2715mm (V) -
INPUT SIGNAL
Frequency: Fh = 24 ~ 82KHz ;Fv = 50 ~ 75Hz Sync: Separate Sync, Composite Sync, Sync on Green -
COMPATIBILITY
PC: Windows 8, Windows 10 certified Mac®: Power Mac tested -
CONNECTOR
Input: HDMI x 1 (v1.4 compatible)
DVI-D x 1
DB -15 x 1
Audio in x 1 (3.5mm plug)Output: Earphone out x 1 (3.5mm plug) -
AUDIO
2W x 2 -
POWER
Power: 3-pin plug (CEE22) x 1 Voltage: AC 100-240V (Universal); 50/60Hz Consumption: 22W Optimize: 19W Conserve: 14W -
ERGONOMICS
Tilt: 25 ~ -5 degrees Swivel: 340 degrees Pivot: 90 degrees Height Adjustment: 0-100mm -
WALL MOUNT
VESA®: 100mm x 100mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% to 90% (no condensation) -
DIMENSIONS (W X H X D)
Physical with stand (mm): 566 (W) x382.4~482.4 (H) x204.3 (D) Physical without stand (mm): 566 (W) x 343.2 (H) x 51 (D) Packaging (mm): 664 (W)x 422 (H) x 169 (D) -
WEIGHT
Net with stand (kg): 5.53kg Net without stand (kg): 3.95kg Gross (kg): 7.12kg -
PACKAGE CONTENTS
LCD Display/Power Cable (1.5m)/VGA Cables (1.5m)/DVI Cables (1.5m)/Audio Cable (1.5m)/Quick Start Guide
*Actual content may differ from market to marketLCD Display/Power Cable (1.5m)/VGA Cables (1.5m)/DVI Cables (1.5m)/Audio Cable (1.5m)/Quick Start Guide
*Actual content may differ from market to market - The Max. refresh rate may vary by I/O port, resolution, user environment and settings. For additional information please check the the “Specifications” section in the user guide.
