Key Features

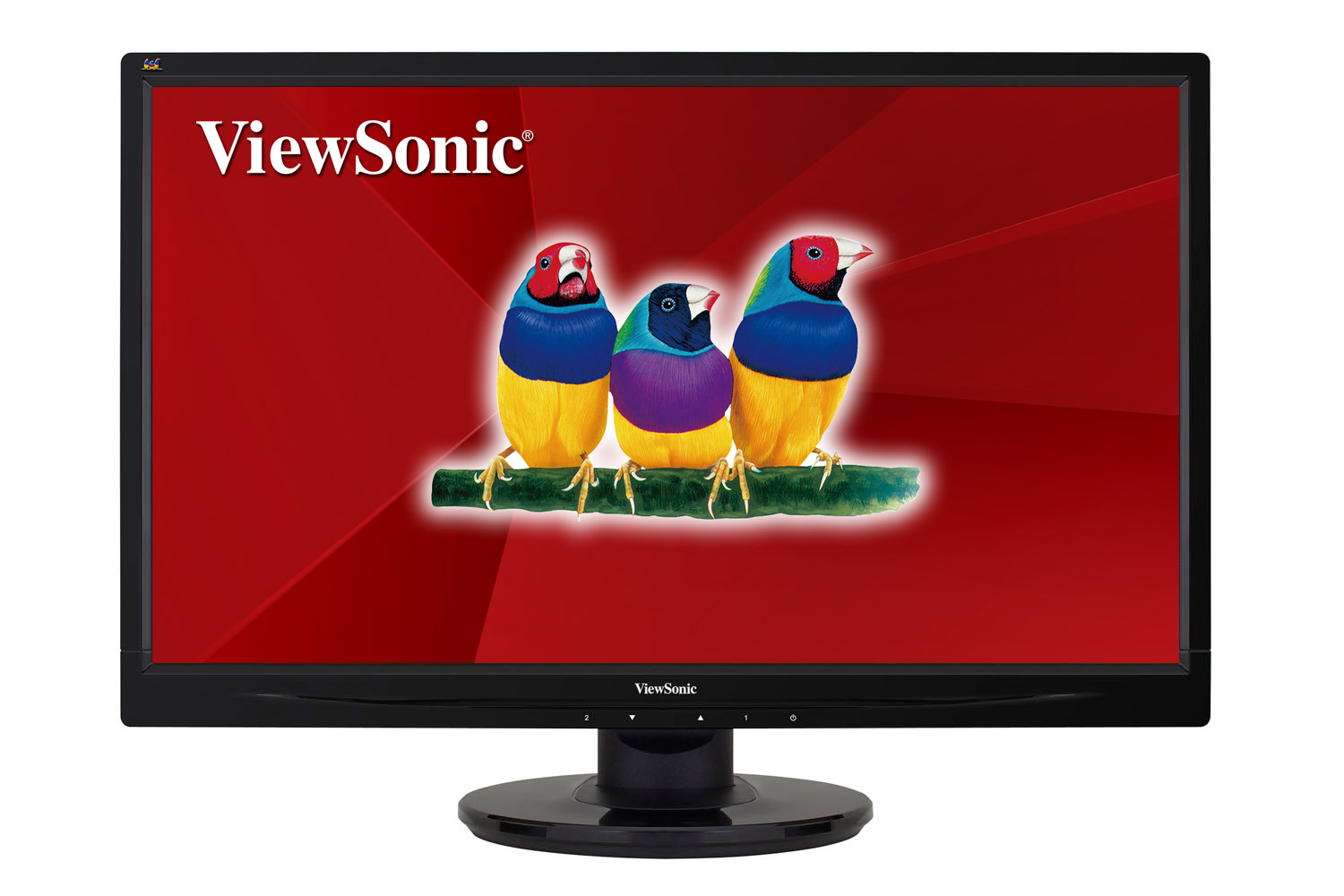

VA2445m-LED
Product Description
ViewSonic's VA2445m-LED monitor features a LED backlit 24" (23.6" Visible) thin bezel display with integrated speakers. The VA2445m-LED is environmentally friendly, mercury-free, and offers a full HD 1920x1080 resolution. This beautiful display has a 10,000,000:1 MEGA Dynamic Contrast Ratio, DVI inputs, 5ms response time, and a VESA mountable glossy finish design.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.6
    Panel Type: TN Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 10M:1
    Light Source: LED
    Brightness: 300 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 5ms
    Viewing Angles: 170º horizontal, 160º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio In: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 15W
    Eco Mode (optimized): 18W
    Consumption (typical): 22W
    Consumption (max): 30W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - DVI-D
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 9
    Net Without Stand (lbs): 8.2
    Gross (lbs): 12
  • WEIGHT (METRIC)
    Net (kg): 4.1
    Net Without Stand (kg): 3.7
    Gross (kg): 5.4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 24.7 x 17.3 x 4.8
    Physical (in.): 22.5 x 15.8 x 8.3
    Physical Without Stand (in.): 22.5 x 13.8 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 628 x 440 x 123
    Physical (mm): 571 x 401 x 211
    Physical Without Stand (mm): 571 x 351 x 50
  • GENERAL
    PACKAGE CONTENTS: VA2445M-LED x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
