LCD Display
VA2256-H
Key Features
- SuperClear® IPS technology
- Frameless bezel
- HDMI and VGA inputs
- ViewMode technology
- Flicker-Free and Blue Light Filter
Product Description

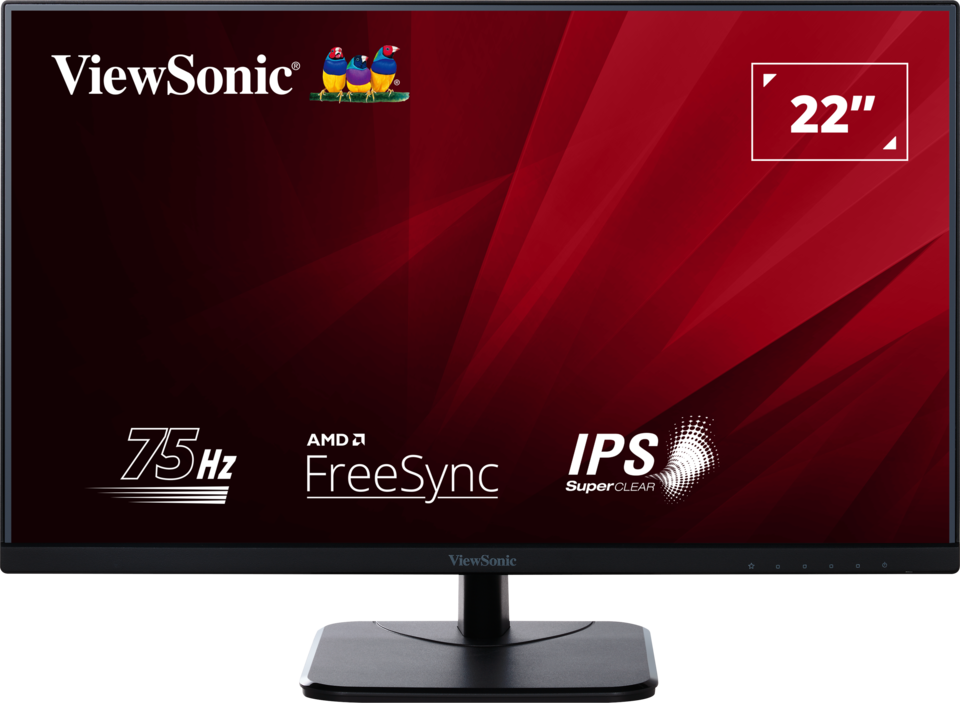

The ViewSonic® VA2256-H is a 22” Full HD monitor with a borderless bezel, IPS panel, and flexible connectivity for use at home or in the office. With SuperClear® IPS technology and Full HD resolution images are clear and detailed from a wide range of viewing angles. The monitor’s extensive connectivity options include HDMI and VGA inputs allowing increased setup flexibility when connecting to other devices. VA2256-H’s borderless bezel design delivers a sleek look and seamless viewing experience. It also comes equipped with Flicker-Free and Blue light eye care technologies to help eliminate eye strain caused by extended viewing periods. In addition, ViewSonic’s exclusive ViewMode™ function offers a selection of intuitive presets to deliver optimised screen performance for various different applications.
- VESA Compatible (Wall Mount 100x100mm)
- Menu Control Panel
- AC In
- HDMI
- VGA
- Earphone
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 75 Variable Refresh Rate Technology: FreeSync Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 102% size (Typ) Pixel Size: 0.248 mm (H) x 0.248 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
POWER
Eco Mode (Conserve): 14W Eco Mode (optimized): 18W Consumption (typical): 21W Consumption (max): 25W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 24 ~ 84KHz, HDMI (v1.4): 15 ~ 84KHz Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -4º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 7.3 Net Without Stand (lbs): 6.4 Gross (lbs): 10.6 -
WEIGHT (METRIC)
Net (kg): 3.3 Net Without Stand (kg): 2.9 Gross (kg): 4.8 -

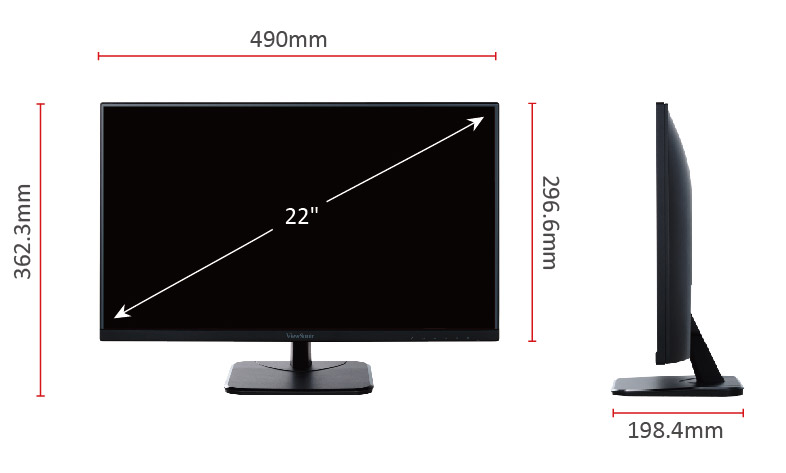

DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 21.4 x 15.1 x 5 Physical (in.): 19.3 x 14.3 x 7.8 Physical Without Stand (in.): 19.3 x 11.7 x 1.9 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 544 x 384 x 128 Physical (mm): 490 x 362 x 198 Physical Without Stand (mm): 490 x 297 x 48 -
GENERAL
PACKAGE CONTENTS: VA2256-H x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards
