Key Features
  • Laser phosphor technology
  • 20,000 hours lifespan
  • 0.24 ultra-short throw ratio
  • Wide colour gamut coverage
  • Ultra-high contrast ratio 100,000:1

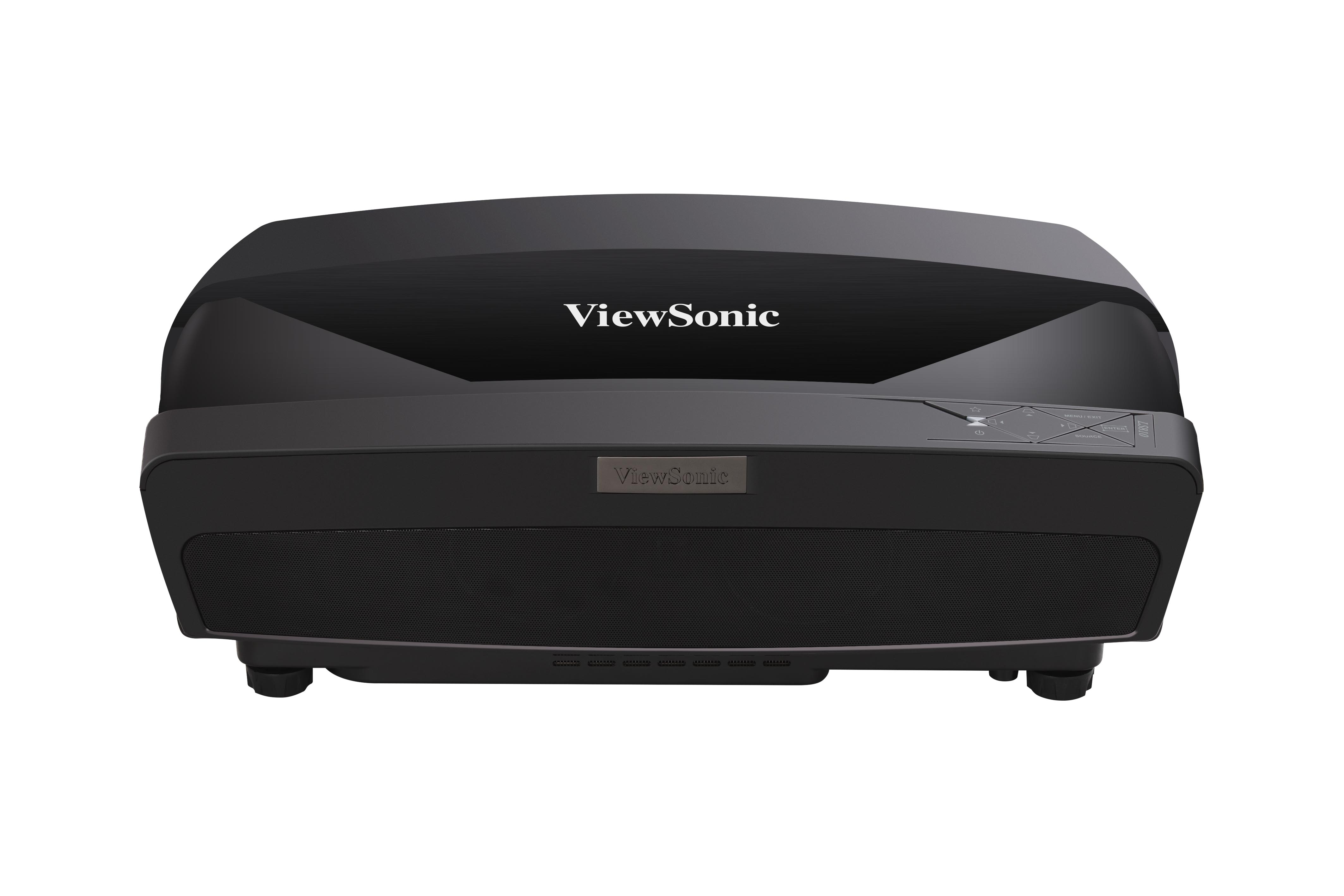

LS810
Product Description
Powered by a Laser Phosphor light source system, the ViewSonic LS810 laser projector provides resource efficient solution when compared to traditional lamp-based projectors. Pure laser lasting up to 20,000 hours which delivers long-term, virtually maintenance-free usage. Featuring 1280x800 WXGA resolution and 5,200 ANSI Lumens of brightness, the ViewSonic LS810 Laser Projector is the ideal solution for high-end retail and luxury commercial use. With a 0.24 ultra-short throw ratio, the LS810 can be placed just inches away from a wall or screen to project a huge image. High contrast ratio and pure laser light source displays superior image quality than other DLP projectors.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Type: TI DMD 0.65
    Resolution: 1280x800 (WXGA)
    F Stop / Focal Length mm: 2.4
    Focus / Zoom: Adjustable by OSD menu / N/A
    Keystone: +/- 30° (Horizontal / Vertical)
    Auto keystone: Yes (Vertical)
    Display Size: 80" ~ 150"
    Throw Distance: 0.43 m ~ 0.8 m
    Throw Ratio: 0.241
    Lamp Power: 390 W
    Lamp Life (Normal / SuperEco Mode): 15,000 / 20,000 (Ecco mode) (hours)
    Brightness: 5,200 ANSI Lumens
    Contrast Ratio: 100,000:1
    Color Depth: 1.07 Billion Colors (30 bits per color)
    Color Wheel: Dual Wheel System (RYGW) / 7200rpm
    Optical Offset: 137.6 +-5%
  • AUDIO
    Speaker: 8W Cube x2
  • INPUT SIGNAL
    Video: 480i and 576i, 480p and 576p, 720p, 1080i, 1080p
    Frequency (H/V): 15 ~ 100 KHz / 24 ~ 120 Hz
  • COMPATABILITY
    PC: Support up to 1920x1080@60Hz
    Mac: Support up to 1920x1080@60Hz
  • CONNECTOR
    VGA Input: x2
    VGA Output: x1
    Digital Input: HDMI x1 / HDMI (MHL2.0) x1
    Composite Input: RCA x1
    S-Video Input: x1
    Component: x2 (Share with VGA input )
    Audio Input: 3.5mm mini jack x1, RCA(L/R) x1
    Audio Output: 3.5mm mini jack x1, RCA(L/R) x1
    Control: RS-232
    USB: Type A x1 (Power Charging) / Mini type B x1 (Maintenance and mouse control) / Micro USB Wire x1 (Power Charging)
    Lan: x1
    3D VESA: x1
    DC Output: x1
  • POWER
    Voltage: 100~240Vac 50/60Hz (Auto Switching)
    Power Consumption: 450 W (Max.)
    Standby: <0.5W
  • OPERATING CONDITION
    Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    Humidity: 0% ~ 90% (non-condensing)
  • NOISE LEVEL
    Normal / Eco Mode: 28dB (Eco Mode)
  • DIMENSIONS
    Physical (WxDxH): 508 x 392 x165 mm/ 20” x 15.43 ” x 6.5”
  • WEIGHT
    Net: 13.6 kgs / 29.96 lbs
  • PACKAGE CONTENTS
    Power Cord, 1.8m, black 1 /VGA Cable, 1.8m, black x 1 / Remote Control with Batteries (With Laser pointer) x1 / Quick Start Guide (one sheet version) x1 / ViewSonic CD Wizard (With User Manual) x 1 /HDMI Cable
