Key Features
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration

IFP7500
Product Description
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP7500 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 75” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC capability, as well as future-proof Intel® SDM capability, for more computing-intensive interactive applications. The IFP7500 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.

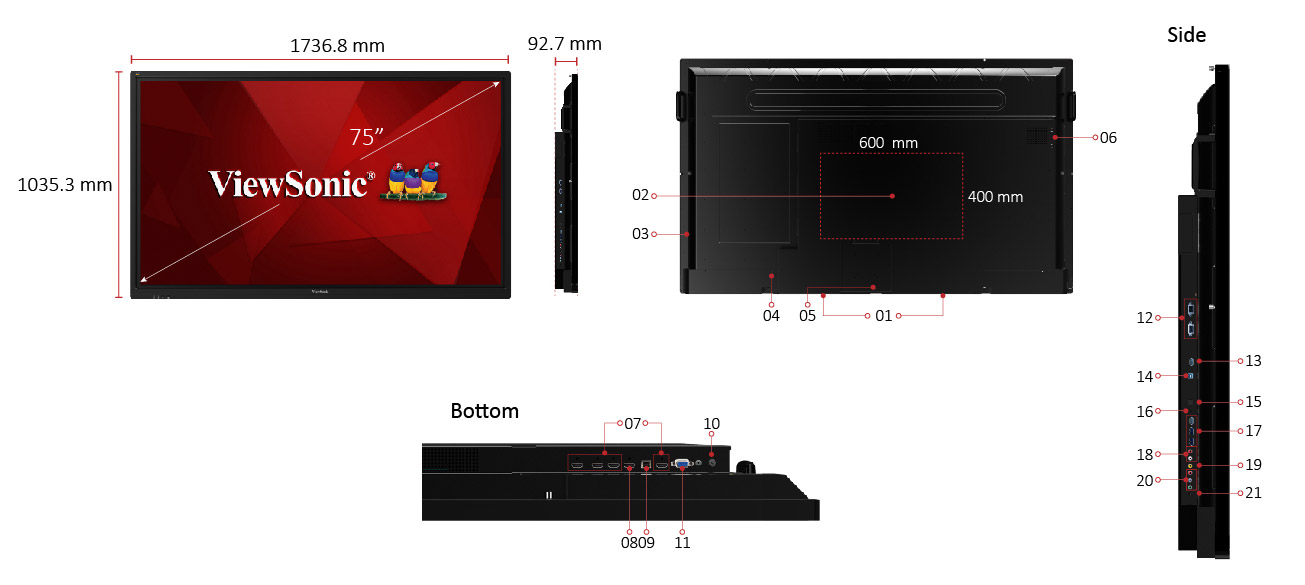

  1. SPEAKERS
  2. VESA® WALL MOUNT 600x400 mm
  3. MENU CONTROLS
  4. AC IN
  5. OPS PC SLOT
  6. INTEL SDM SLOT
  7. HDMI
  8. HDMI OUT
  9. RJ45 (LAN)
  10. VGA-AUDIO
  11. VGA IN
  12. RS232 IN & OUT
  13. USB 2.0 (for OPS PC)
  14. USB 2.0 (Touch)
  15. SPDIF
  16. AUDIO OUT
  17. USB 2.0 & 3.0
  18. AUDIO IN
  19. CVBS IN (AV IN)
  20. YPbPr
  21. CVBS OUT (AV OUT)
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 75"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
    Aspect Ratio: 16:9
    Resolution: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Brightness: 400 nits (typ.) 350 nits (min.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
    Response Time: <10ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 60,000hrs
  • INPUT
    HDMI: x 4
    RGB / VGA: x 1
    Audio: x 1
    CVBS (AV): x 1
    YPbPr: x 1
    RS232: x 1
    PC Slot: x1 PC Slot (Intel OPS Standard)
    x1 SDM
  • OUTPUT
    HDMI: x 1 (for one of HDMI1/2/3)
    Audio (Earphone out): x 2 (front x1, side x1)
    CVBS (AV): x 1
    SPDIF: x 1
    RS232: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 3 (front x1, side x1, top x1)
    3.0 Type A: x 2
    2.0 A type (Dedicated for OPS PC): x 2 (front x1, side x1)
    2.0 Type B (For Touch): x 1
  • SPEAKERS
    20W x 2
  • BUILT-IN PC
    Processor: ARM Cortex A53 Quad Core 1.5G Hz CPU
    Graphic: ARM Mali-450MP4
    Memory: 2GB DDR3
    Storage: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • COMPATIBILITY
    VGA: Refer to timing table
    HDMI: 480i, 480p,720p, 1080p, up to 2160p
    CVBS: 480i
  • CONTROLS
    Physical- Top OSD: Input, Up, Down, Right(VOL+), Left(VOL-), Menu, Power
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: 333.4 W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400mm; Screw: M8 x 20mm
  • OPERATING CONDITIONS
    Temperature (º C): 32°F to 104°F (0°C to 40°C)
    Humidity: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical w/o Stand (mm / inch): 1736.8 x 1035.3 x 108.2 mm / 68.38 x 40.76 x 4.26 inch
    Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 inch
  • WEIGHT
    Net (kg / lb):  60.64kg / 133.69lbs
    Gross (kg / lb):  80.4kg / 177.25lbs
  • WHAT'S IN THE BOX?
    VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)/AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 2
