Key Features

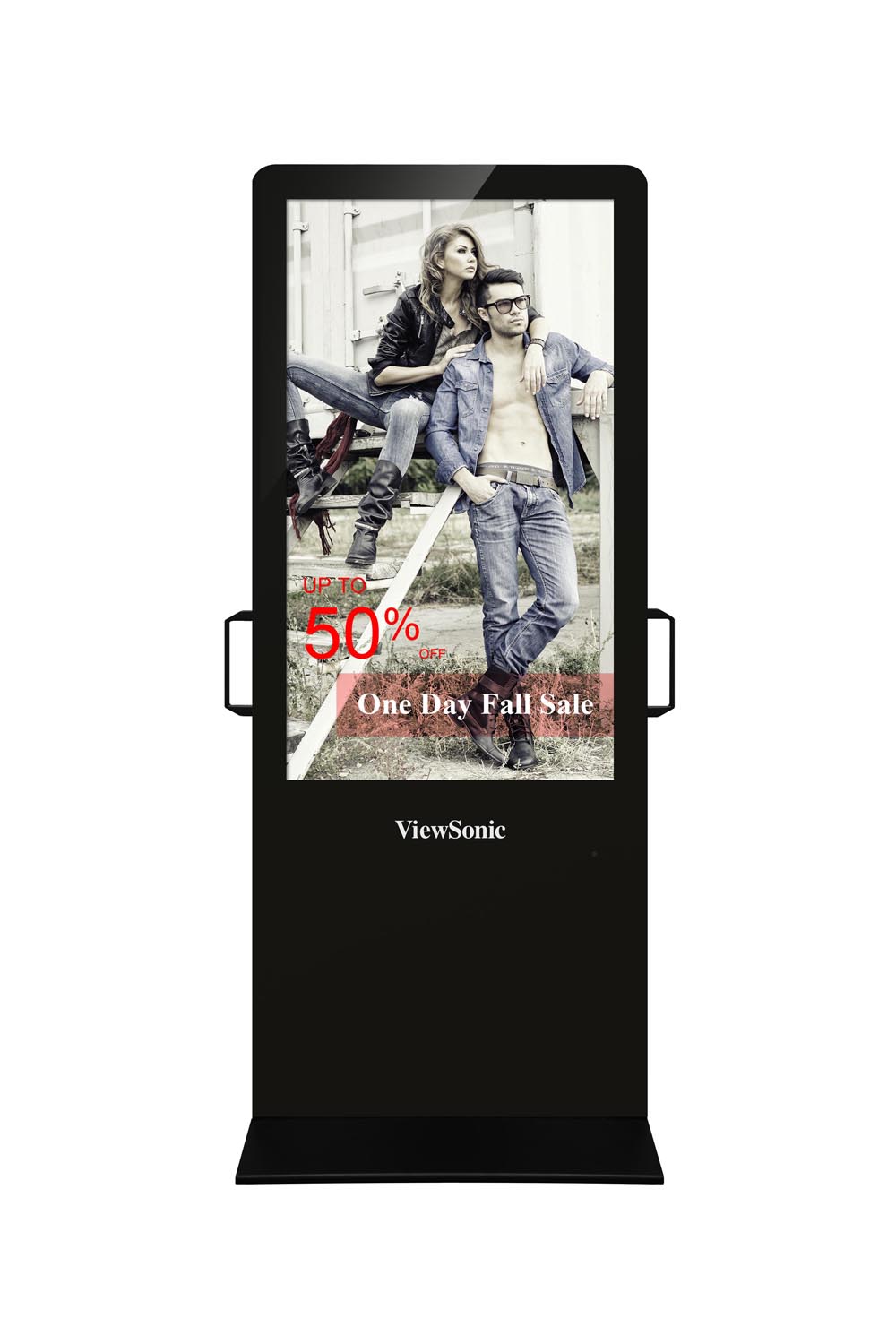

EP5012-TL
Product Description
The ViewSonic EP5012-TL is an interactive 50" all-in-one LED ePoster with a sleek, free-standing design. It delivers high-impact messaging in a number of venues including shopping malls, retail stores, office complexes and school buildings. Great for grabbing attention in busy, high-traffic areas, the EP5012-TL comes with a scratch-proof tempered glass faceplate for added durability. Featuring Full HD 1080p resolution, 176°/176° wide-angle viewing, 400-nit brightness, 5,000:1 contrast ratio, and dual 6W stereo speakers, the EP5012-TL delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the integrated media player and 8GB of internal memory, or directly from a USB hard drive. Plus, the bundled ePoster Manager Express Plus software makes the loading and scheduling of customized multimedia content easier than ever. Flexible HDMI, D-sub, USB (x2), and LAN connectivity also allow for additional content loading options from a PC or networkable media player, while its 4-point touch capability provides intuitive touch operation when connecting with the PC. It also provides simple auto on/off scheduling via an on-screen display, as well as a security lock design, making it an interactive, reliable, and easy-to-maintain digital signage solution.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 50"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1095.84 (H) x 616.41 (V)
    Aspect Ratio: 9:16
    Native Resolution: 1080x1920
    Colors: 16.7M
    Brightness: 400 nits (typ.)
    Contrast Ratio: 5000:1 (typ.)
    Response Time: 6.5ms
    Viewing Angles: H = 176, V = 176 typ.
    Backlight Life: 30,000 Hours Typ.
    Surface Treatment: Hard coating (7H)
    Orientation: Portrait
  • TOUCH
    Type/ Tech: IR
    Touch Resolution: 32768 x 32768
    Touch Point: 4 point for gesture, 2 point for writing
  • STORAGE
    on-board flash: 8GB
  • INPUT
    HDMI: x1
    RGB / VGA: x1
    Audio: x1 PC audio(3.5 mm)
  • LAN
    RJ45: x1
  • USB
    Type A: x2
  • SPEAKERS
    6W x 2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    HDMI: Refer to timing table
  • CONTROLS
    Physical- Top OSD: SYSTEM SETTINGS: OSD Language, Screen Mode, Screen Resolution, Clock Display, USB, Scrolling Text, Sync Settings, Reset
    SYSTEM CONTROL: Work Mode, Storage Priority
    NETWORK SETTING: Server Settings, Get IP Type, Machine ID, MAC Address
    DATE AND TIME: Date, Time, Startup Sync Time Setting, Dayligh Saving Time, Time Zone, Sync Time Now
    ON/OFF TIMER: Timer Mode, Control Mode
    SPECIAL SETTINGS: Volume, Source
    FILE MANAGEMENT: Format
    SOURCE: OSD Language, Reset.
    IMAGE: Brightness, Contrast, Saturation, Color Temp., Auto Adjust, H Position, V Position, Phase, Clock
    Multimedia: JPG, BMP, PNG, MPG, AVI, WMV, MOV, MP3, GIF, JPEG, MKV, FLV, RM, RMVB, TS, TP
  • BUNDLE SOFTWARE
    ePoster Manager Express Plus
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: "ON": Typ. : 110+- 1W
    “Power Saving”: VGA: 12+-1 W; HDMI: 12+-1 W
    "Off"(Suspend): 10+-1W
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 50°C
    Humidity: 20% ~ 90% non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (inch / mm): 29.72x72.83x17.72 / 755x1850x450
    Packaging (inch / mm): 35.35x79.45x22.52 / 897.5x2018x572
  • WEIGHT
    Net (lb / kg): 193.12 / 87.6
    Gross (lb / kg): 217.38 / 89.6
  • PACKAGE CONTENTS
    1. EP5012-TL eposter 2. Power Core 3. Y power cable 4. Remote control with battery 5. Quick Start Guide 6. User Guide CD 7. Key 8. Hexagon wrench(to remove handles) 9. Black labels(to cover holes after removing handles)
    *Actual content may differ from market to market
