Key Features

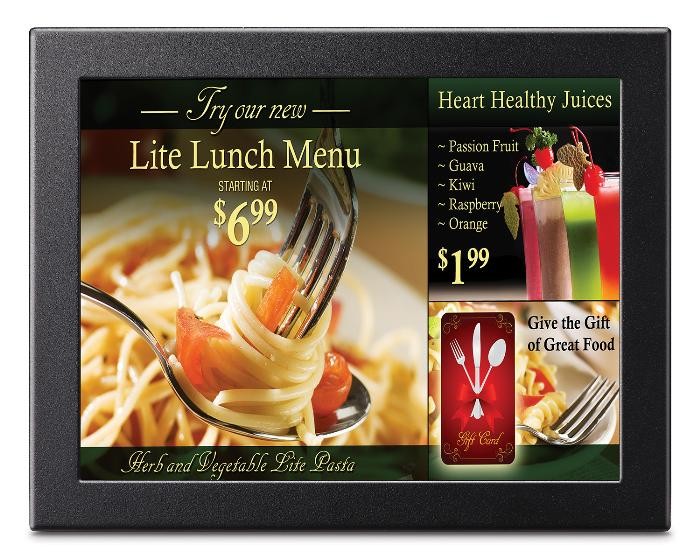

EP1020r
Product Description
ViewSonic’s EP1020r wireless display is just right for POS messaging or meeting room schedules. It features a built-in media player with internal storage capable of playing of JPEG images and video content with audio. Vivid retail messaging is easily configured via a play list, using the included Signage Manager Express Software and uploaded into the EP1020r display over a corporate network or manually using a USB thumb drive. Great for advertising in high visibility locations, informational signs for hotel lobbies and public locations, even for advertising boards in banks and on university campuses. The EP1020r is also SMIL compatible making the perfect companion for ViewSonic’s new ScheduleIT software for automated meeting room scheduling.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Resolution: 800x600 dots
    Display Size: Diagonal: 10.4" (4:3) TFT LCD
    Brightness: 250 cd/m2 (typ)
    Contrast Ratio: 400:1 (typ)
    Color Depth: Over 16.7M color (depending on video card used)
    Response Time: 8ms (typ gray-to-gray)
    Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
    Storage: 2GB Compact Flash
  • COMPATIBILITY
    Card Reader: SD/MS (Storage)
    Photo Formats: JPEG baseline 5120x3840, progressive 2048x1536
    Video Formats: Video music and Text – JPEG, MPEG 1, MPEG-4ASP, DivX, BMP
    Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit, MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps
  • AUDIO
    Speakers: 3W (x2)
  • CONNECTOR
    Network: RJ45 Ethernet
    USB: 1.1 (x1)
    Ethernet: RJ45 (10/100M)
  • POWER
    Consumption: Max 24W
    Power Save Mode: Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • OPERATING CONDITIONS
    Temperature: 32–122º F (0–40º C)
    Humidity: 5-85% (non-condensing)
  • DIMENSIONS (WXHXD)
    Physical: 9.9" x 7.8" x 1.7" (251mm x 198mm x 43mm)
  • WEIGHT
    Net: 4.0 lbs. (1.8 kg)
    Gross: 5.3 lbs. (2.4 kg)
  • STORAGE ENVIRONNMENT
    Temperature: 0–40º F (32º–122º C)
    Humidity: 10–90% (non-condensing)
  • WALL MOUNT
    75mm x 75mm
  • PACKAGE CONTENTS
    ePoster, AC adapter, stand, antenna, Quick Start Guide and Software on CD
