Key Features

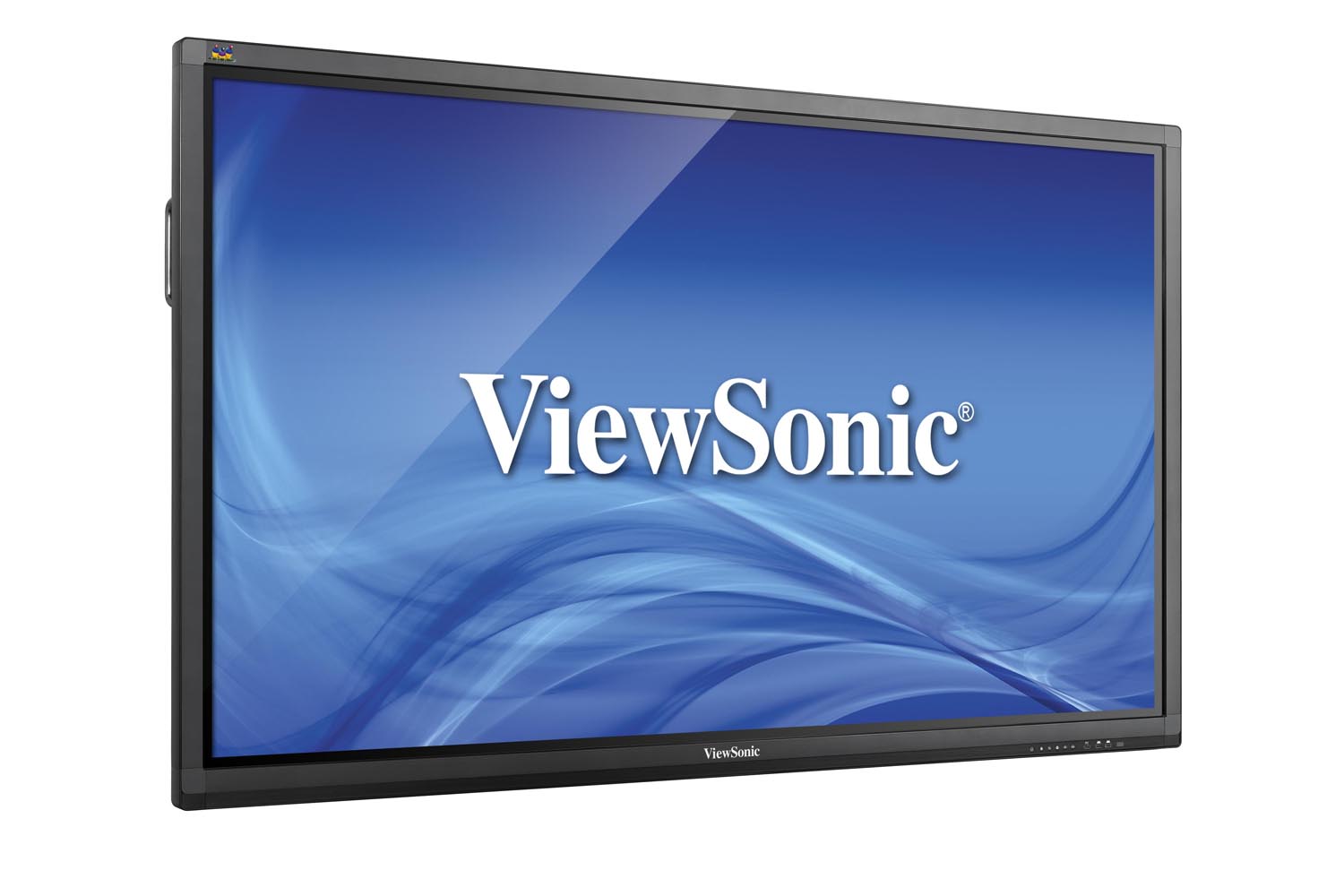

CDE8451-TL
Product Description
The ViewSonic CDE8451-TL is a stunning 84" 4K Ultra HD interactive touch display. Delivering four times the detail of Full HD displays, the CDE8451-TL is ideal for higher education and corporate meeting applications, as well as for scientific, GIS, and wayfinding applications. The 10-point touch-enabled display allows multiple users to simultaneously write or draw on the display’s surface using their fingers or styluses. The large-format LED screen and Ultra HD 3840 x 2160 resolution guarantees the ultimate in colour, clarity, and image detail. Equipped with a tempered glass overlay, anti-glare treatment, and rounded corners, the CDE8451-TL is designed for heavy usage in high-traffic areas. The ViewSonic CDE8451-TL Ultra HD interactive touch display is the perfect solution where ultra-high resolution imaging and touch interactive performance is needed.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 84"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1860.48(H) x 1046.52(V) (84.04” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 3840 x 2160
    Colors: 1.07 Billion
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1600:1 Typ.
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 Hours Typ.
    Surface Treatment: AG coating (7H)
    Orientation: Landscape
  • TOUCH
    Type/ Tech: IR
    Touch Resolution: 32767 x 32767
    Touch Point: 10-point
  • INPUT
    HDMI: x3 HDMI (up to 1080p), x1 HDMI (up to 4K2K)
    RGB / VGA: x3
    Audio: x3 PC audio(3.5 mm)
    CVBS: x1
    RS232: x1
    OPS: PC Slot (proprietary)
  • OUTPUT
    RGB / VGA: x1
    Audio: x1 Earphone Out
    SPDIF: x1
  • LAN
    RJ45: x1
  • USB
    Type A: x3 (2.0), x1 (3.0)
    Type B: x1, for touch
  • SPEAKERS
    10Wx2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i,
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: INPUT:Power, Home, Return, Setting, VOL-, VOL+
    PC, Embd Player, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4
    LIGHT:1~10
    VOLUME:0~100
    VGA:H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode
    PICTURE:Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
  • BUNDLE SOFTWARE
    ViewBoard Lite, ViewBoard 2.0
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: 550W (typ)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 600
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (inch / mm): 77.9x46.7x3.7 / 1978x1187x95
    Packaging (inch / mm): 85.4x53.9x12.6 / 2170x1370x320
  • WEIGHT
    Net (lb / kg): 255.74 / 116
    Gross (lb / kg): 321.87 / 146
  • PACKAGE CONTENTS
    1. CDE8451-TL display 2. power cable 3. VGA cable 4. audio cable 5. USB cable 6. remote control with batteries 7. stylus (x3) 8. ViewSonic Wizard CD (with user guide)
