Key Features

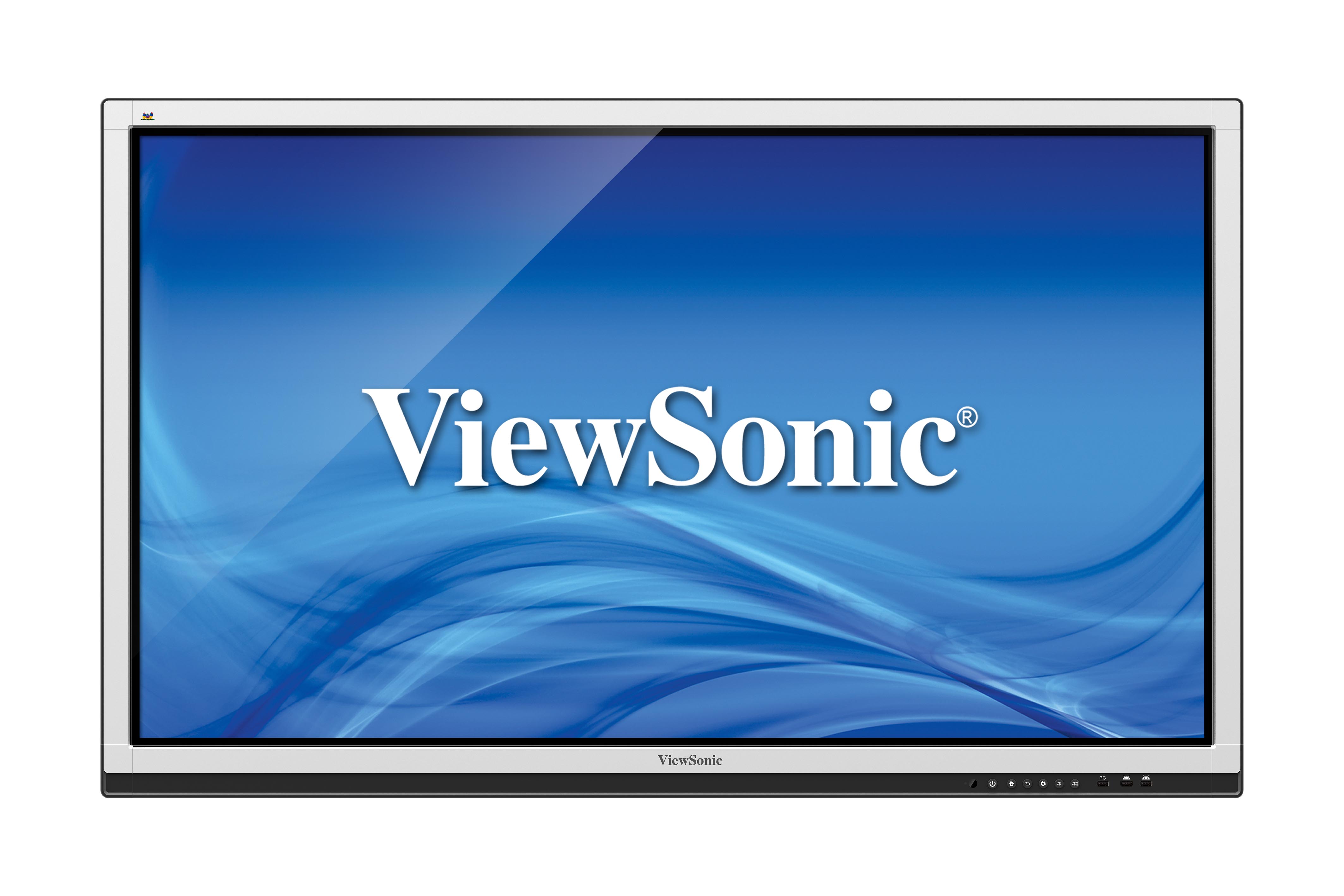

CDE7061T
Product Description
The ViewSonic® CDE7061T 70" Full HD interactive flat panel display is a perfect solution for interactive business and educational classroom applications. This 20-point touch-enabled display, paired with PC less operation and pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s 7H hardness surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms, while Flicker-Free and Blue Light filter technologies create a more comfortable viewing environment. With a built-in dual core processor and 8GB internal storage, as well as versatile connectivity including HDMI, VGA, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP711-P10) capability with Windows® 10 OS and ViewBoard annotation software, for more computing-intensive interactive applications. The CDE7061T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 70"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area: 1549.44 x 871.56
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 16.7 M colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 4000:1 Typ.
    Response Time: 5ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours Typ.
  • TOUCH
    Type/Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 point for gesture, 10 point for writing
  • INPUT
    HDMI: x3
    RGB / VGA: x3
    Audio: x3 PC audio(3.5 mm)
    CVBS: x1
    RS232: x1
    OPS: PC Slot (proprietary)
  • OUTPUT
    RGB / VGA: x1
    Audio: x1 Earphone Out
    SPDIF: x1
  • LAN
    RJ45: x1
  • USB
    Type A: x3 (USB 2.0 including 2 USB ports in front), x1 (USB 3.0)
    Type B: x1 (for touch)
  • SPEAKERS
    10Wx2
  • COMPATIBILITY
    RGB PC/HDMI PC: up to 1920x1080@60Hz/1080p
    CVBS: 480i
    HDMI: 480i, 480p,720p, up to 1080p
  • POWER
    Voltage: 100V-240V AC 50/60HZ
    Consumption: "On": 222W (typ)
    "Off": < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA ): 600 x 400 mm
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 65.6 x 40.0 x 3.9 / 1665 x 1015 x 98
  • WEIGHT
    Net (lb / kg): 121.25 / 55
  • PACKAGE CONTENTS
    VGA cable / Power cable x 4 / Remote control / USB cable / Audio cable / Touching pen / User manual CD wizard / RS232 adapter
