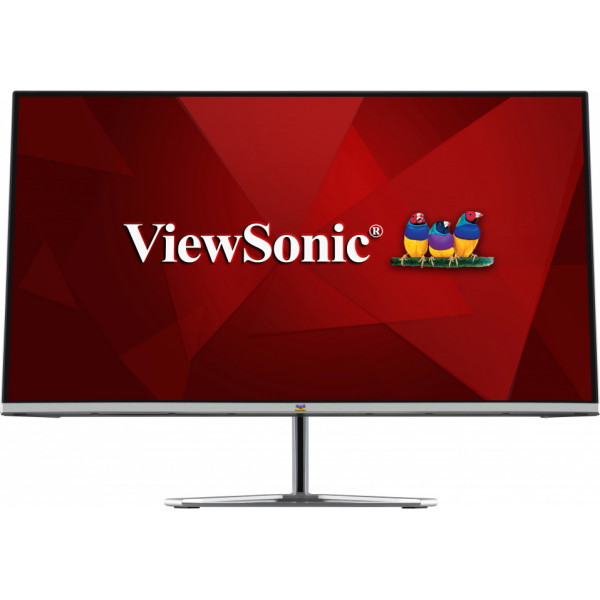

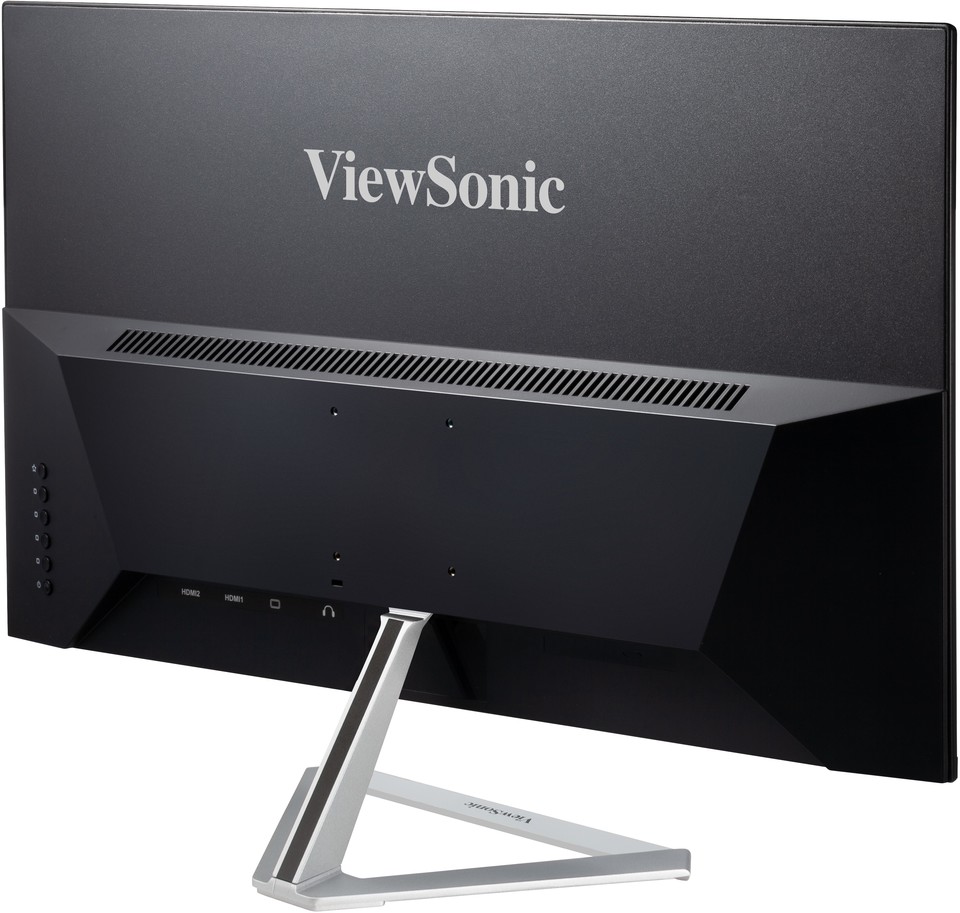

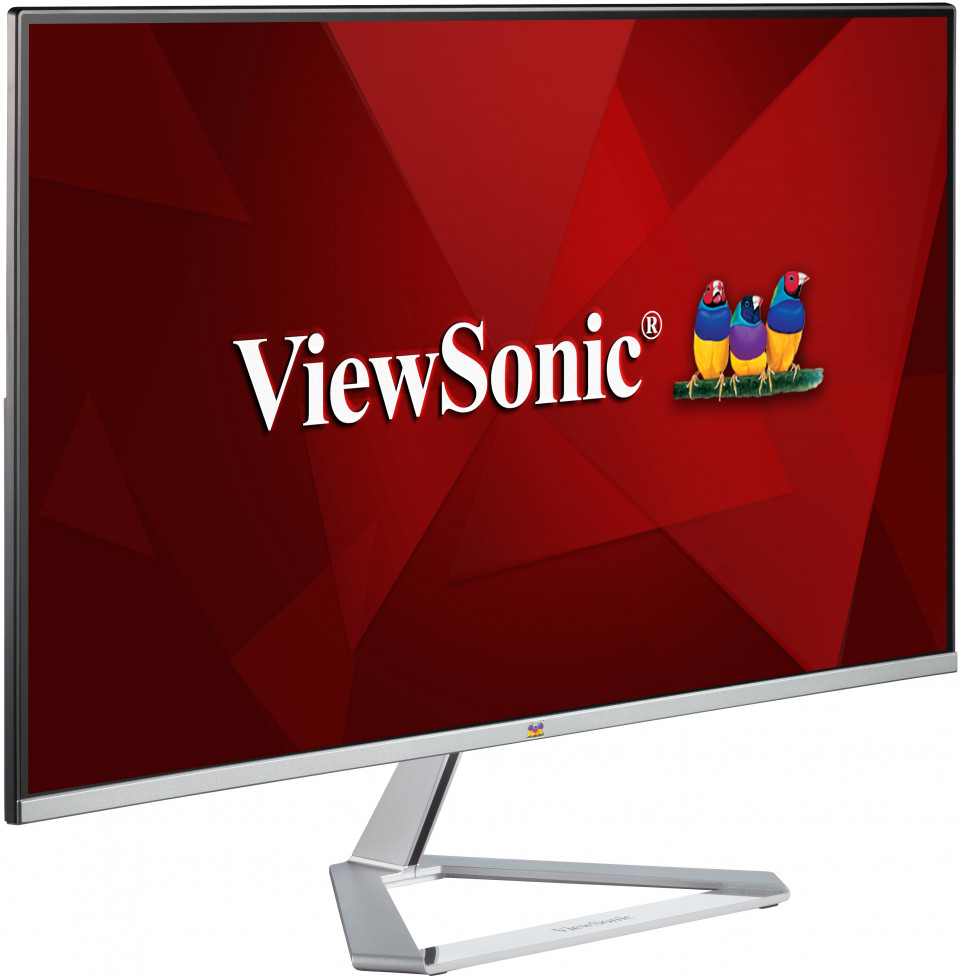

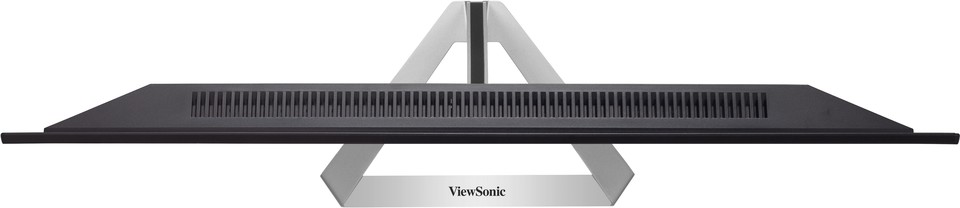

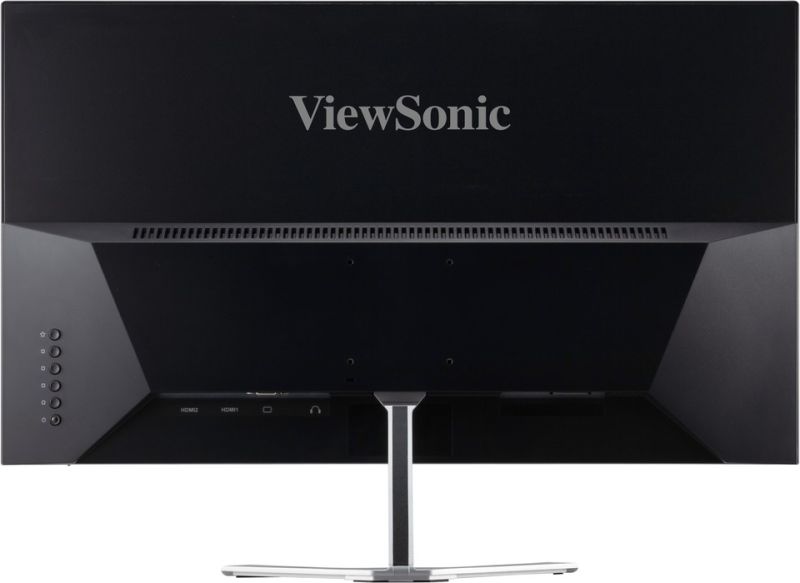

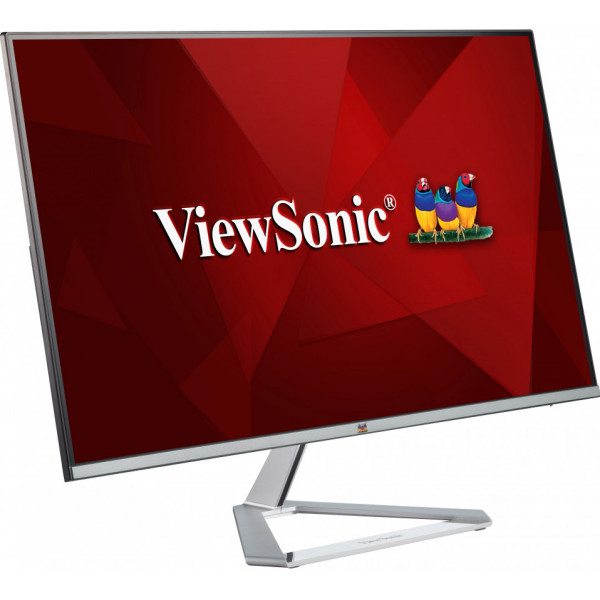

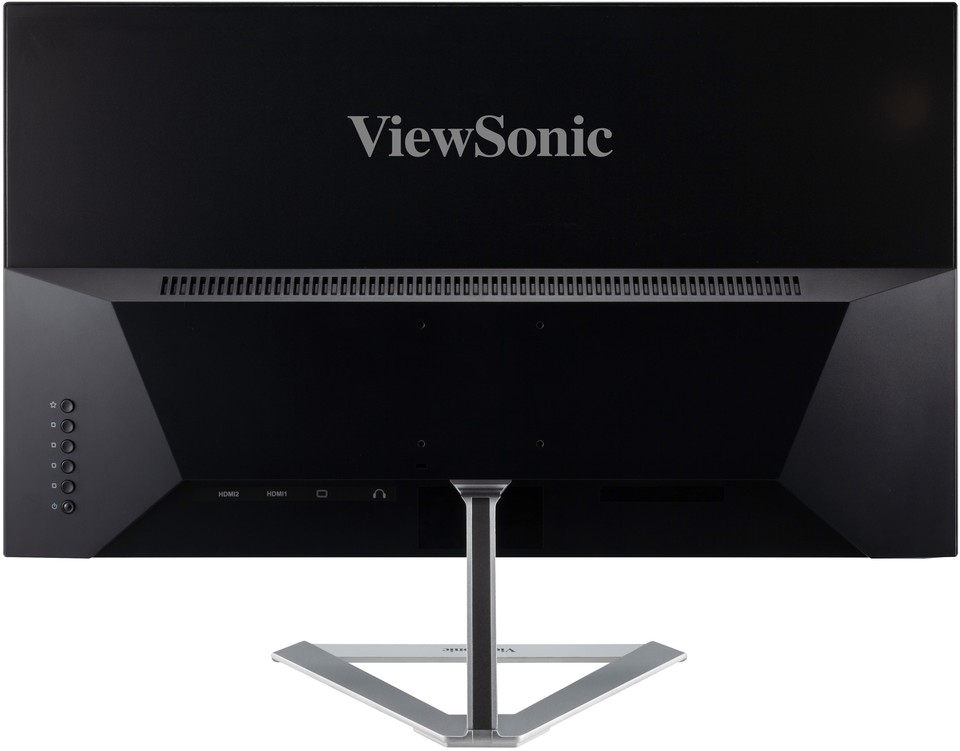

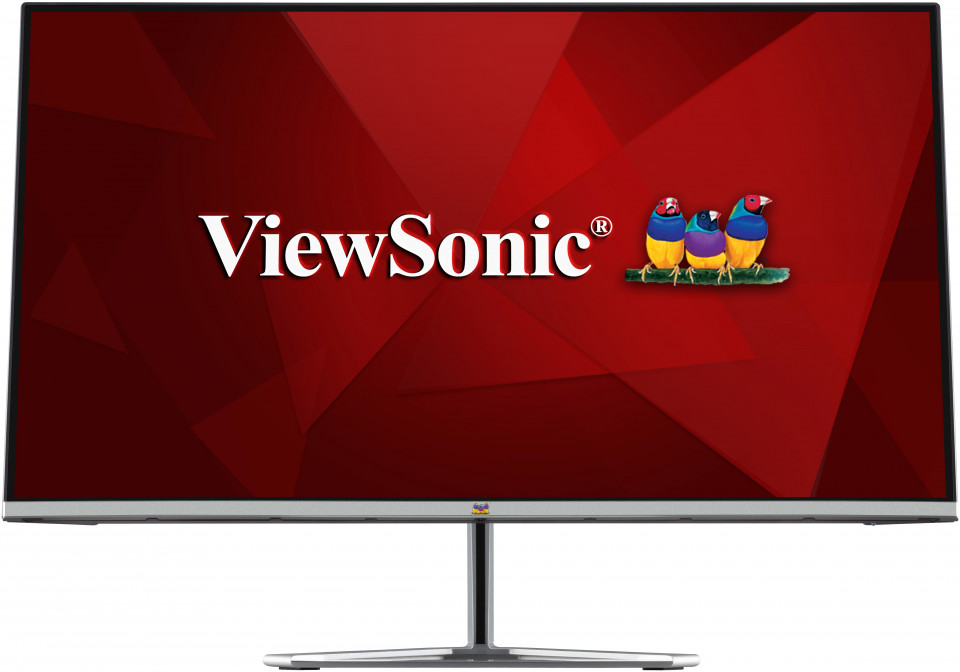

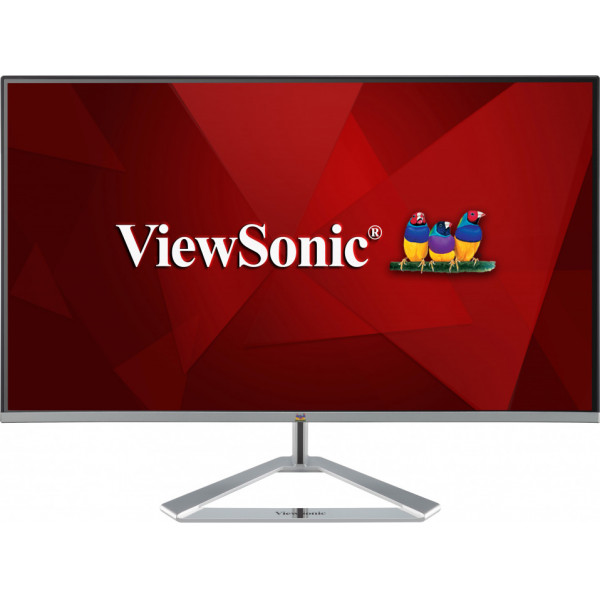

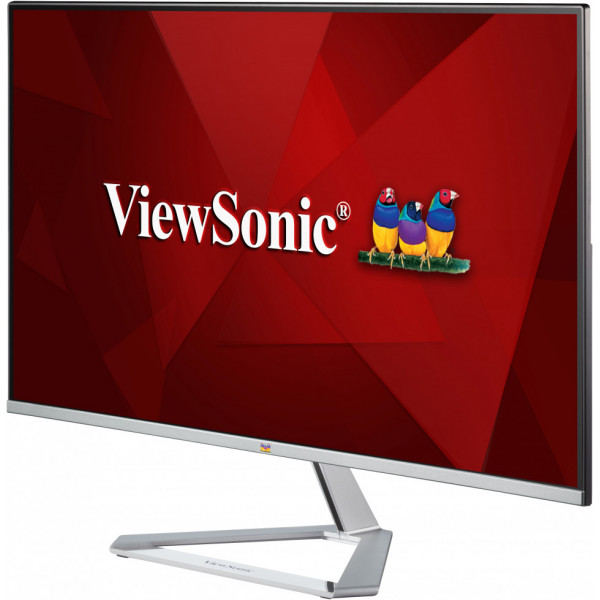

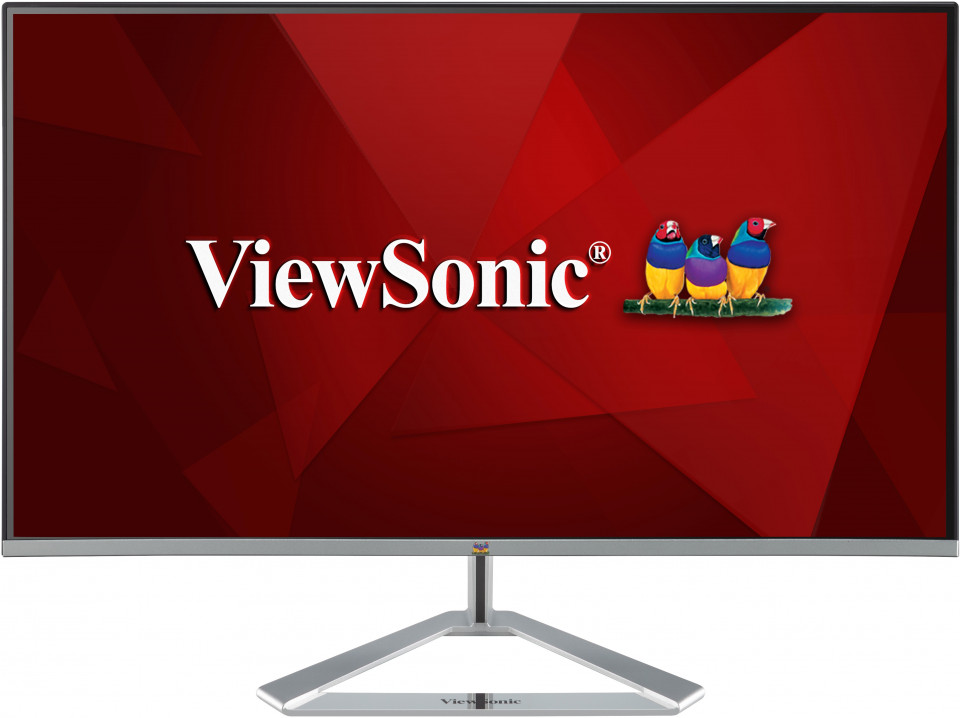

VX2476-SMH

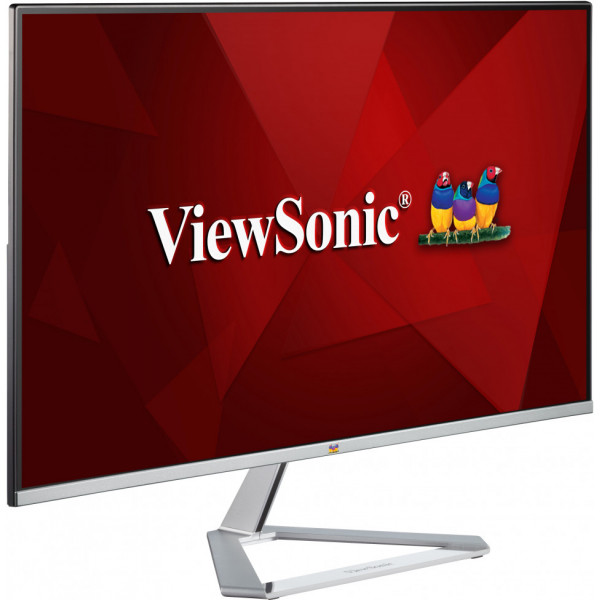

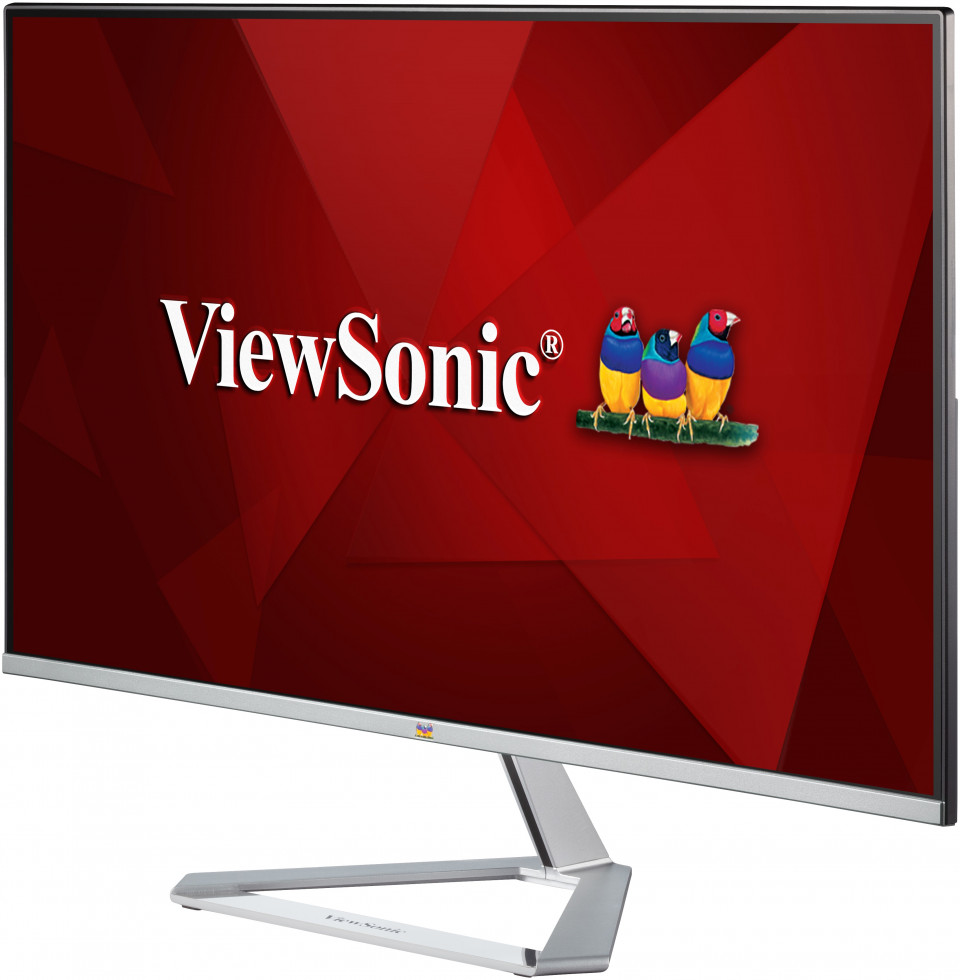

24" IPS Monitor with Frameless Bezel

SuperClear® IPS panel for vivid picture quality and wider viewing angles

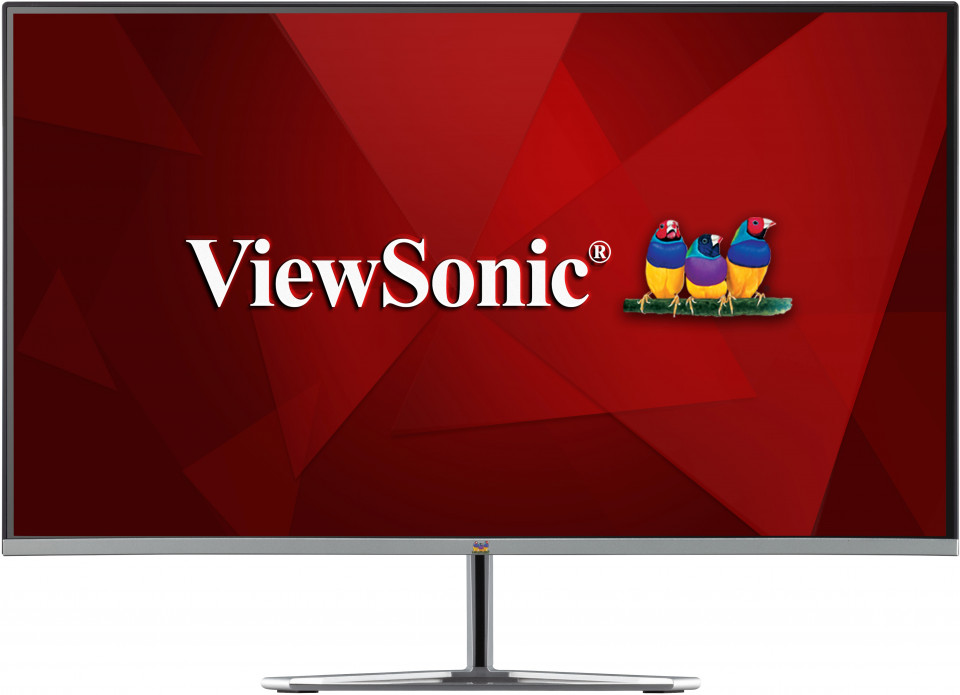

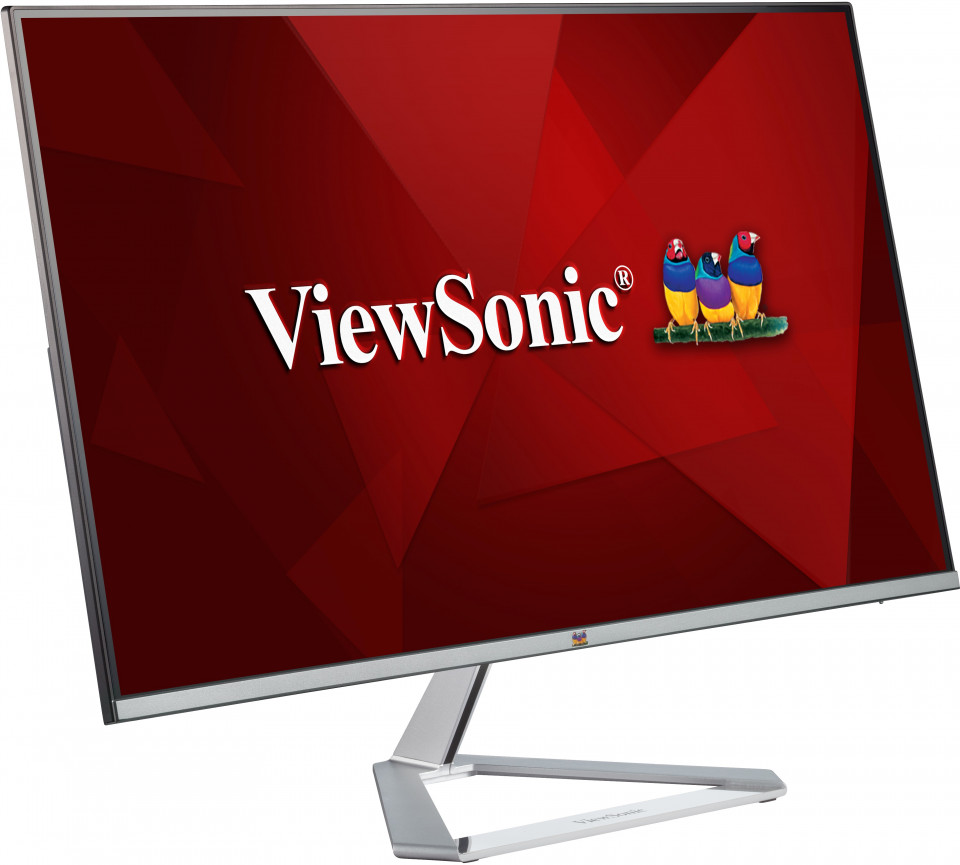

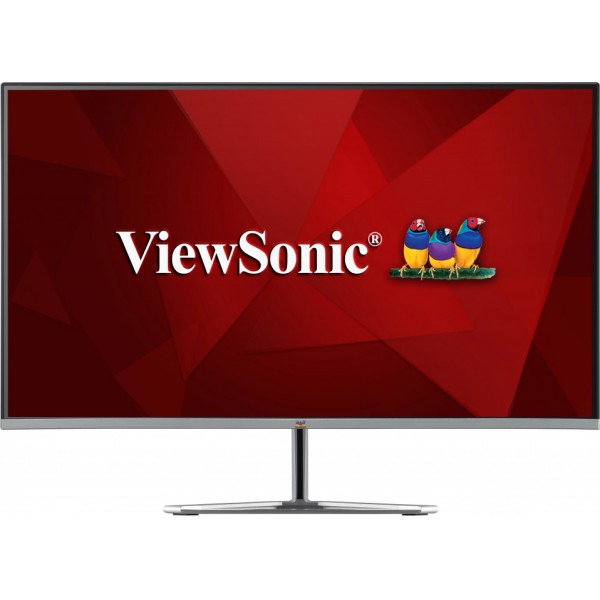

Frameless bezel and stylish stand
75Hz Refresh Rate delivers fluid visuals
Flexible connectivity with VGA and two HDMI ports
User-customized and pre-calibrated ViewMode for every scenario

GALLERY

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080

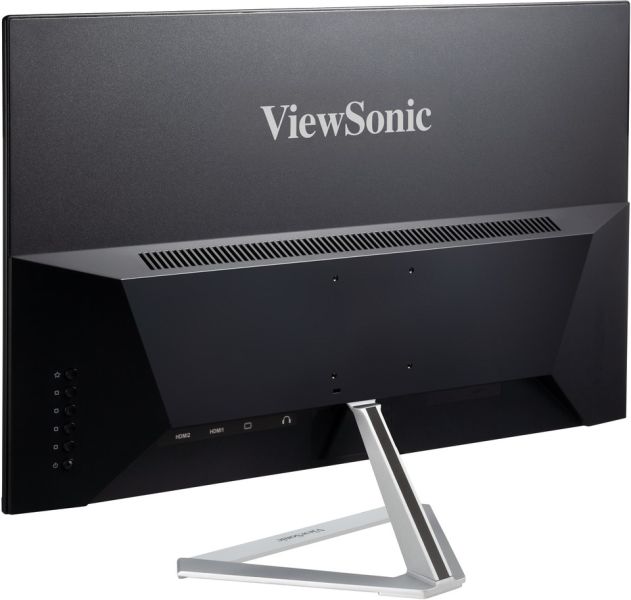

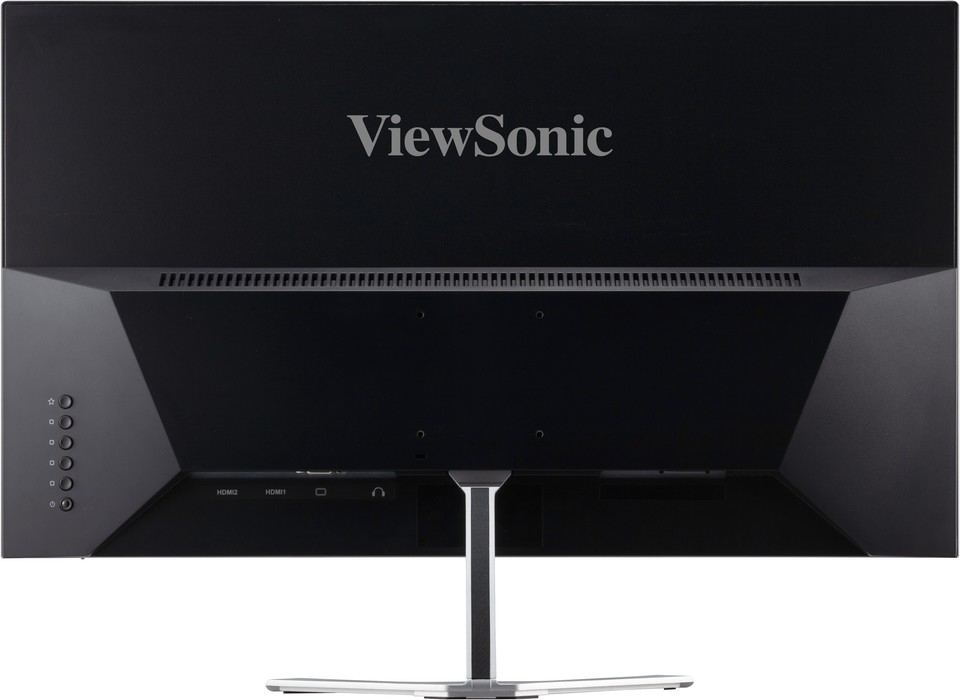

Connector
VGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 2
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 16W
Eco Mode (optimized): 19W
Consumption (typical): 22W
Consumption (max): 23W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls

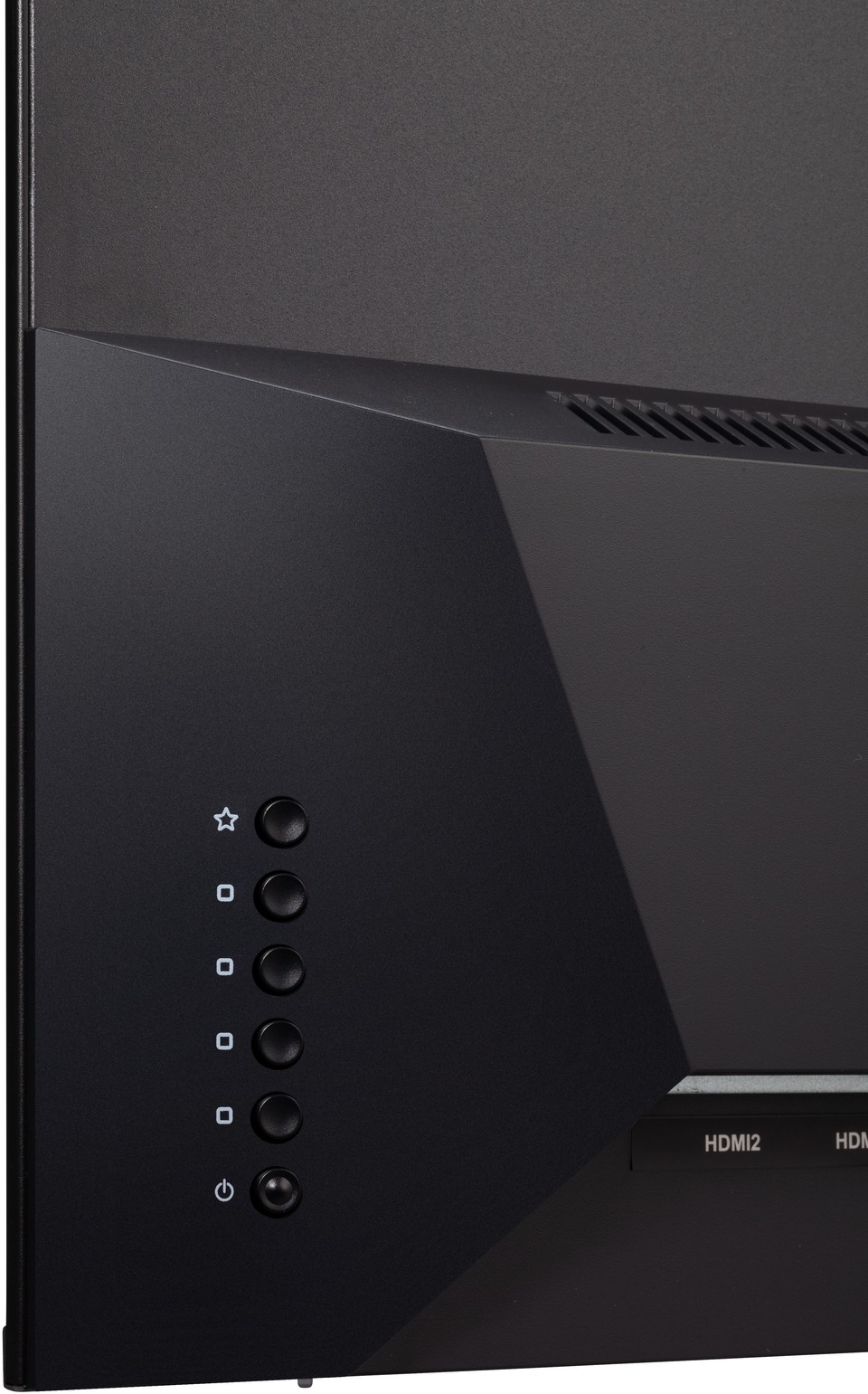

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: RGB Analog: 15 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog

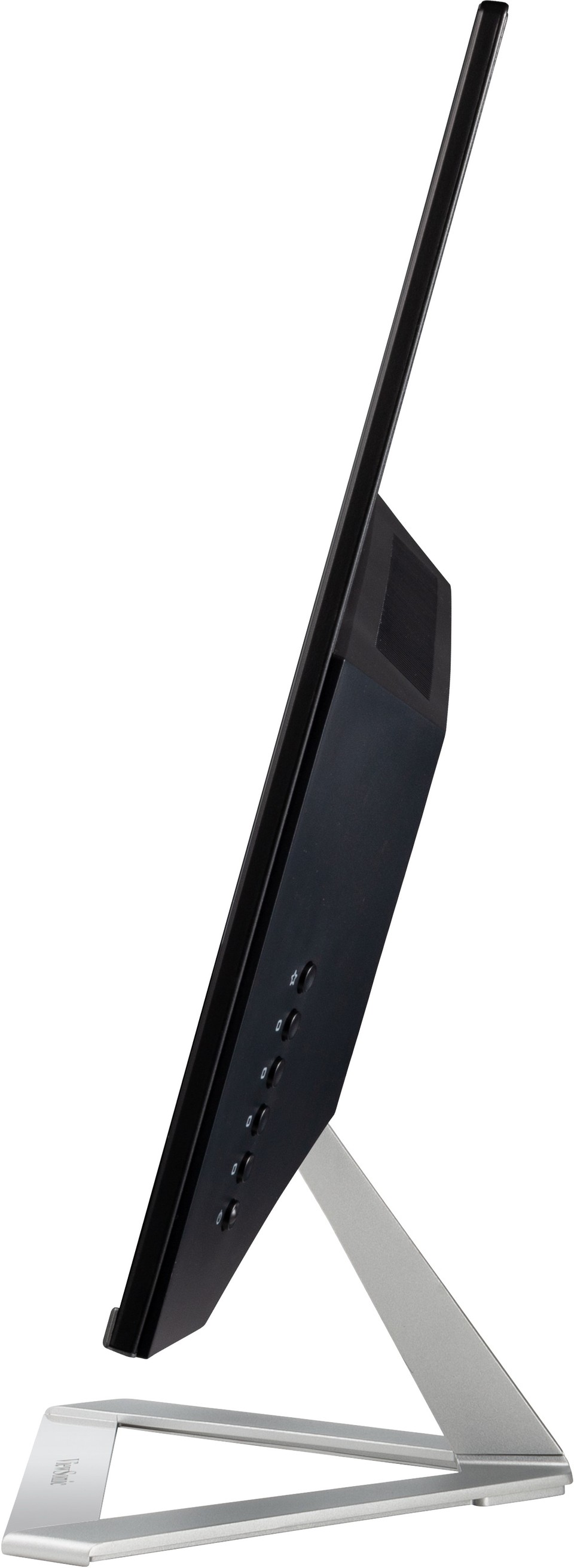

Ergonomics

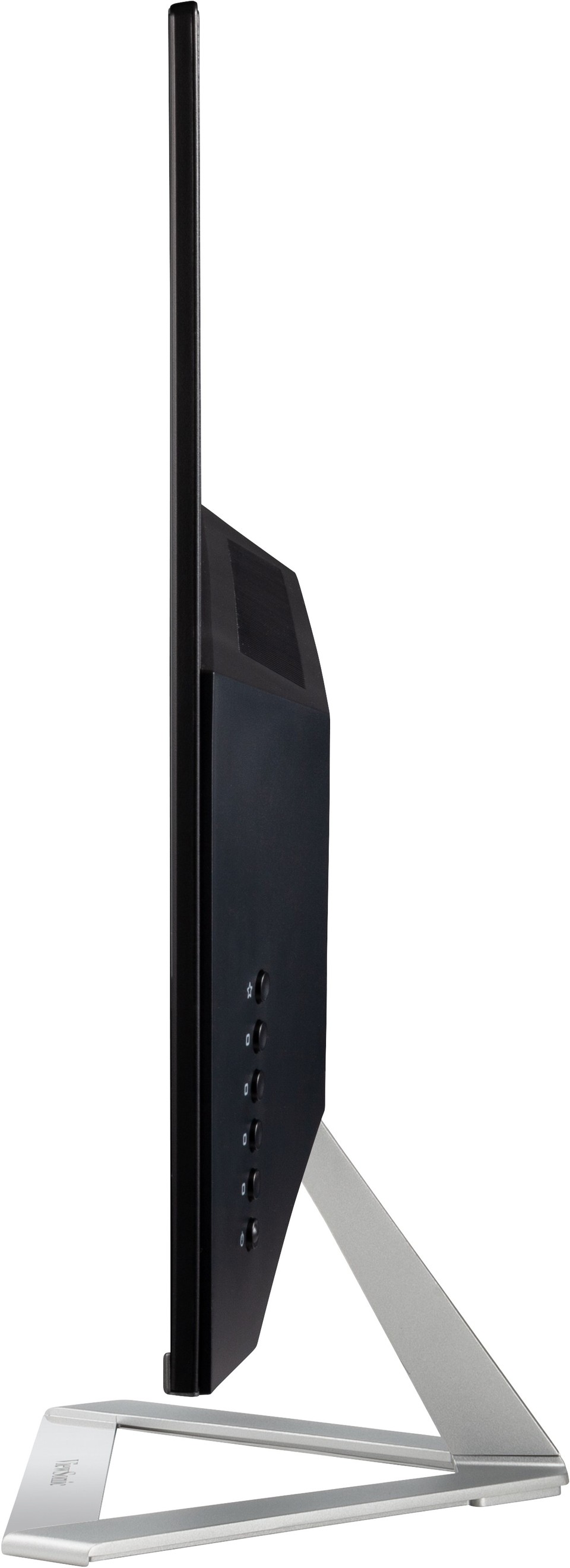

Tilt (Forward/Back): -3º / 15º
Weight (imperial)
Net (lbs): 7.7
Net Without Stand (lbs): 6.8
Gross (lbs): 10.5
Weight (metric)
Net (kg): 3.5
Net Without Stand (kg): 3.1
Gross (kg): 4.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.5 x 16.6 x 4.3
Physical (in.): 21.2 x 15.8 x 7.2
Physical Without Stand (in.): 21.2 x 12.5 x 1.7
Dimensions (metric) (wxhxd)
Packaging (mm): 623 x 421 x 109
Physical (mm): 539 x 402 x 184
Physical Without Stand (mm): 539 x 316 x 43
General
PACKAGE CONTENTS: VX2476-SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
