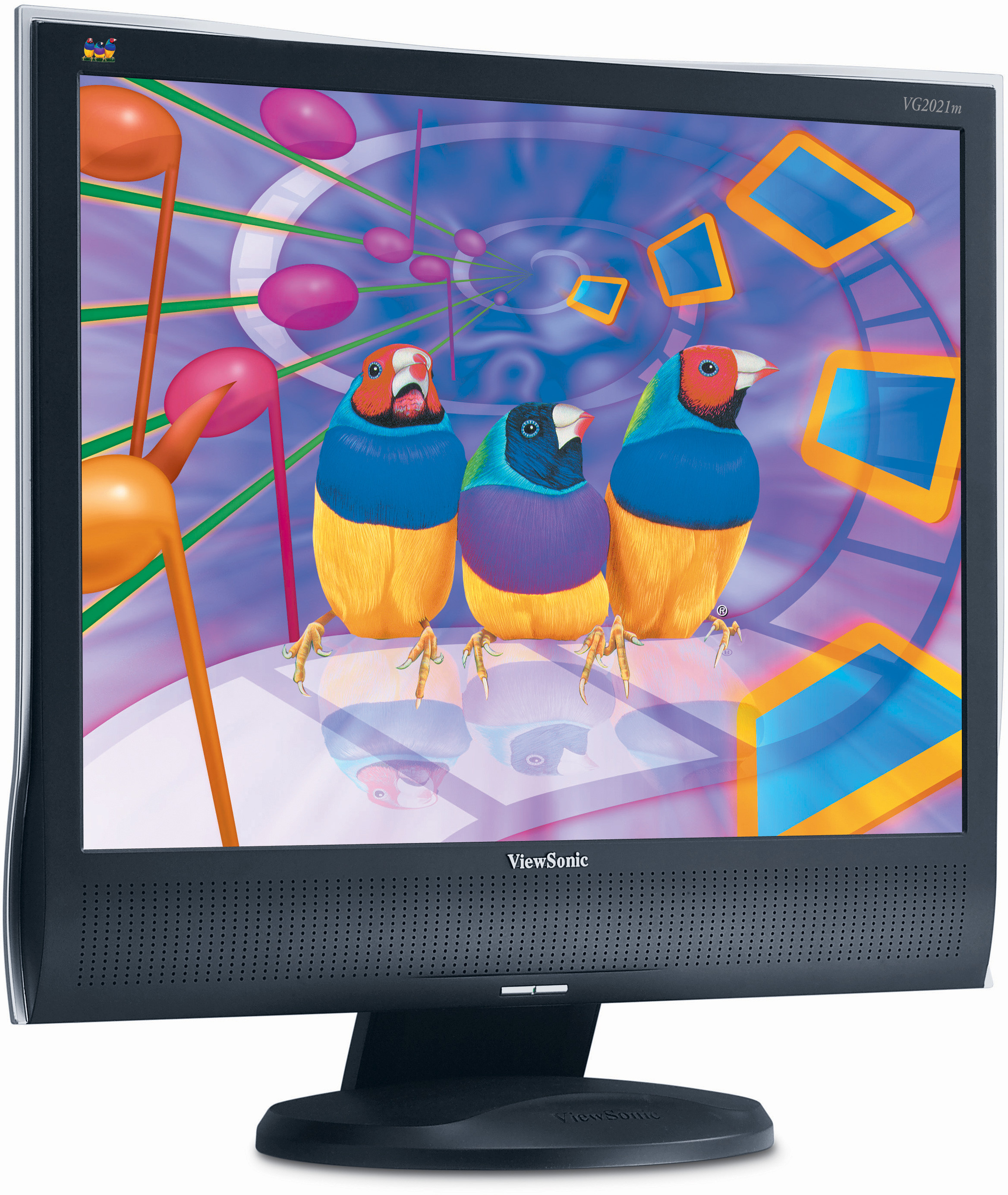

ViewSonic VG2021m 51cm / 20" MEDIA GRAPHICS SERIES LCD MONITOR

Wichtigste Eigenschaften

Produktübersicht

ViewSonic’s VG2021m 51cm / 20" sleek two-tone LCD is your top choice in high-performance multimedia monitors. Class-leading features like ClearMotiv™ 8ms broadcast-quality video response DELIVER SUPERIOR CLARITY AND PERFECT FOCUS WHEN VIEWING MOVING IMAGES. You will enjoy a superb multimedia experience with the bezel-integrated speakers. Crystal-clear pictures featuring 300cd/m² brightness (typ.) along with ergonomic adjustments enhance productivity in graphic production, medical and financial fields. Professionals demanding high performance, elegant design, and great value will choose the ViewSonic VG2021m LCD monitor.

Besuchen Sie uns

www.viewsonic.com

LCD

Typ:	50.80cm (20") TN colour TFT active matrix SXGA+ LCD
Kontrastverhältnis:	500:1 (typ.)
Betrachtungswinkel:	150° horizontal, 130° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Helligkeit:	300 cd/m² (typ.)
Anzeigefläche:	40.9cm horizontal x 30.6cm vertical; 50.8cm diagonal
Optimale Auflösung:	1400 x 1050
Reaktionszeit:	8ms (off-on-off) (typ.)
Lichtquelle:	Long life, 50000 hrs. (typ.)
Panel-Oberfläche:	Anti-glare
Pixelabstand:	0.292mm
Farbtiefe:	16.2M colours (6-bit + 2-bit FRC)
Pixeltakt:	140MHz

KOMPATIBILITäT

PC: VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Mac®: Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
ABMESSUNGEN

Physisch mit Fuß: 458 x 465 x 205

Physisch ohne Fuß: 459 x 404 x 61

Verpackung (B x H x T): 520 x 520 x 160

ZERTIFIKATE

TCO’03, GS, TÜV/ERGO, ISO13406-2 (pixel failure class II), CE, CB, UL, cUL, FCC-B, ICES-003, Energy Star, GOST-R, NOM, TUV-S/IRAM/UL-AR S Mark, SASO, PCBC, VCCI, BSMI, CCC, MIC, PSB, C-TICK, RoHS

LIEFERUMFANG

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Lautsprecher: 2 x 2.5 watt integrated stereo speakers
ANSCHLüSSE

Analog: 15-pin mini D-sub (detachable cable)

Stromversorgung: 3-pin AC plug (CEE22)

Audioeingang: 3.5mm stereo audio line-in
STROMVERSORGUNG

Spannung: AC 100–240V, 50/60Hz (auto switch), internal power supply

Verbrauch: 55 watt (max.), <1 watt in power save mode

BEDIENUNGSELEMENTE

Grundausstattung:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), audio (volume, mute), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

BETRIEBSBEDINGUNGEN

Temperatur: 5°C – 35°C

Feuchtigkeit: 20% – 80% (non-condensation)
GEWICHT

Netto mit Fuß: 6.2kg
VIDEOEINGANG

Frequenz: Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz

Synchronisierung: H/V separated (TTL)

Analog: RGB analogue (0.7 Vp-p , 75 ohms)
ENERGIEVERWALTUNG

Meets TCO’03 and Energy Star standards
SICHERHEIT

Kensington® security port
WANDHALTERUNG

VESA® FPMPMI 75mm x 75mm

PC:	VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
Mac®:	Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Physisch mit Fuß:	458 x 465 x 205
Physisch ohne Fuß:	459 x 404 x 61
Verpackung (B x H x T):	520 x 520 x 160

Analog:	15-pin mini D-sub (detachable cable)
Stromversorgung:	3-pin AC plug (CEE22)
Audioeingang:	3.5mm stereo audio line-in

Spannung:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Verbrauch:	55 watt (max.), <1 watt in power save mode

Temperatur:	5°C – 35°C
Feuchtigkeit:	20% – 80% (non-condensation)

Frequenz:	Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz
Synchronisierung:	H/V separated (TTL)
Analog:	RGB analogue (0.7 Vp-p , 75 ohms)
