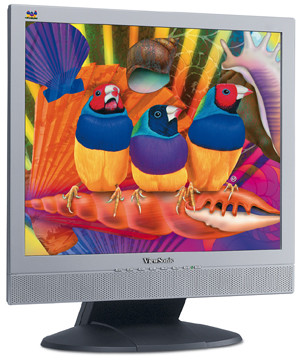

ViewSonic VA912 48cm / 19" VALUE SERIES LCD DISPLAY

LCD

Typ:	48cm / 19" colour TN TFT active matrix SXGA LCD
Kontrastverhältnis:	600:1 (typ)
Betrachtungswinkel:	140° horizontal, 130° vertical (at 10:1) 150° horizontal, 160° vertical (at 5:1)
Helligkeit:	250cd/m² (typ)
Anzeigefläche:	376mm horizontal x 301mm vertical, 48.3cm diagonal
Optimale Auflösung:	1280 x 1024
Reaktionszeit:	8ms (typ)
Panel-Oberfläche:	Anti-glare
Pixelabstand:	0,294mm
Farbtiefe:	16.2M colours (6-bit + 2-bit FRC)

KOMPATIBILITäT

PC: VGA up to 1280 x 1024 (up to 75Hz)

Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz
ABMESSUNGEN

B x H x T: 424 x 442 x 186 (with stand)

ZERTIFIKATE

CE, CB, GS, ERGO, ISO13406-2 (pixel failure class II), TCO'99, UL, cUL, FCC-B, ENERGY, NOM, TUV-S/IRAM/UL-AR S Mark, MPR II, GOST-R + 20 original copies hygienic, PCBC, VCCI, BSMI, CCC, PSB, C-TICK

EINGANGSSIGNAL

Frequenz: Fh: 30-82kHz,

Fv: 50-85Hz

Analog: RGB analogue (75 ohms, 0.7 Vp-p)

Digital: DVI-D (TMDS, 100 ohms)

Synchronisierung: H/V separated (TTL)
ANSCHLüSSE

Analog: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Audioeingang: Stereo mini audio line in
STROMVERSORGUNG

Spannung: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply

Verbrauch: < 60W (typ.); ≤ 3 watt in power save mode

BEDIENUNGSELEMENTE

OSD:	Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
Physisch:	Physical Power on/off, menu, up, down, select

BETRIEBSBEDINGUNGEN

Temperatur: 0°C to 40°C

Feuchtigkeit: 10% to 90% (no condensing)
GEWICHT

Netto: 5.5kg
ENERGIEVERWALTUNG

Meets TCO'99 and ENERGY standards
ERGONOMIE

Neigung: Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 (up to 75Hz)
Mac®:	Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz

Frequenz:	Fh: 30-82kHz, Fv: 50-85Hz
Analog:	RGB analogue (75 ohms, 0.7 Vp-p)
Digital:	DVI-D (TMDS, 100 ohms)
Synchronisierung:	H/V separated (TTL)

Analog:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Audioeingang:	Stereo mini audio line in

Spannung:	AC 100–240V (universal), 50–60Hz (auto switch), internal power supply
Verbrauch:	< 60W (typ.); ≤ 3 watt in power save mode

Temperatur:	0°C to 40°C
Feuchtigkeit:	10% to 90% (no condensing)
