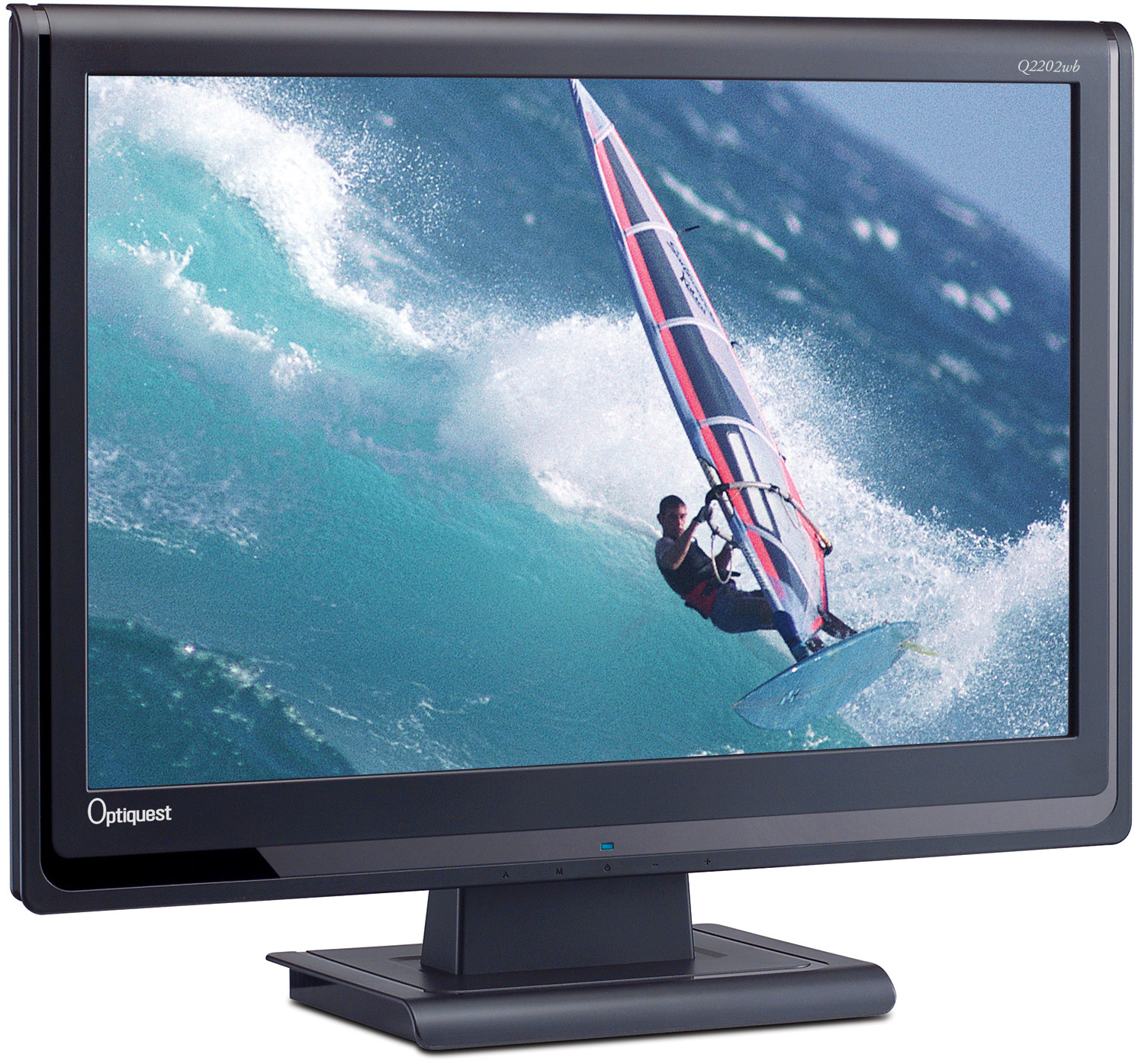

ViewSonic Q2202wb 56 cm / 22" (21.6" VIEWABLE) WIDESCREEN LCD WITH SUPER-FAST 5MS VIDEO RESPONSE

Wichtigste Eigenschaften

Produktübersicht

The Optiquest® Q2202wb 55 cm / 21.6" widescreen LCD is the big screen choice for users on a budget. You won’t sacrifice performance for price with this display. It combines high brightness and contrast ratio with 5ms video response for CRYSTAL-CLEAR, BLUR FREE VIDEO, TEXT AND GRAPHICS. The super-high 1680x1050 resolution reduces eye fatigue and ensures text and graphics are crisp. The widescreen lets you work in two applications or documents side-by-side, so you get more done in less time. The integrated power supply and VESA® wall-mount compliance reduce clutter and free up valuable desktop real estate. Furnish your desktop in style with the budget-friendly, stylish Q2202wb.

Besuchen Sie uns

www.viewsonic.com

COLORS

Black

LCD

Typ:	56 cm / 22" (21.6" viewable) color TFT active matrix WSXGA LCD
Kontrastverhältnis:	1000:1 (typ)
Betrachtungswinkel:	170º horizontal, 160º vertical @ contrast ratio > 10:1 170° horizontal, 170° vertial @ contrast ratio 5:1
Helligkeit:	300 cd/m² (typ)
Anzeigefläche:	46 cm/ 18.3" horizontal x 29 cm / 11.4" vertical; 55 cm / 21.6" diagonal
Optimale Auflösung:	1680x1050
Reaktionszeit:	5ms (typ)
Lichtquelle:	Long life, 50,000 hrs. (typ)
Panel-Oberfläche:	Anti-glare

KOMPATIBILITäT

PC: VGA up to 1680x1050 (non-interlaced)

Mac®: G3/G4/G5 up to 1680X1050
ABMESSUNGEN

Physisch mit Fuß: 526mm x 433mm x 173mm (20.7" x 17.0" x 6.8")

Physisch ohne Fuß: 526mm x 371mm x 75mm (20.7" x 14.6" x 3.0")
ZERTIFIKATE

UL, cUL, FCC-B, NOM, ENERGY STAR®, TUV-S, CE, ISO13406-2 Class II, WEEE, RoHS, GOST-R / Hygenic
LIEFERUMFANG

LCD display, power cable, video cable, User Guide
GARANTIE

One-year limited warrranty on parts, labor and backlight
RECYCLING/ENTSORGUNG

The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
ANSCHLüSSE

Analog: 15-pin mini D-sub

Stromversorgung: 3-pin AC plug (CEE22)
STROMVERSORGUNG

Spannung: AC 100–240V (universal), 50–60Hz (auto switch)

Verbrauch: 45W (typ)

BEDIENUNGSELEMENTE

Grundausstattung:	Power, 2, up, down, 1
OnView®:	Auto image adjust, brightness, contrast, color adjust (sRGB, 9300K, 6500K, 5400K, user color), H. position, V. position, H. size, resolution notice, OSD position, OSD timeout, OSD background, fine tune, sharpness, language, input select, recall

BETRIEBSBEDINGUNGEN

Temperatur: 32-104ºF (0-40ºC)

Feuchtigkeit: 20-80% (non-condensing)
GEWICHT

Netto mit Fuß: 4.6 kg (10.1 lb. )

Netto ohne Fuß: 4.5 kg (9.8 lb. )

Brutto mit Fuß: 5.8 kg (12.8 lb. )
VIDEOEINGANG

Frequenz: Fh: 30~80kHz, Fv: 55~75Hz

Synchronisierung: H/V separated (TTL)

Analog: RGB analog (75 ohms, 0.7 Vp-p)
ENERGIEVERWALTUNG

ENERGY STAR® standards
ERGONOMIE

Neigung: –5º/+15º
