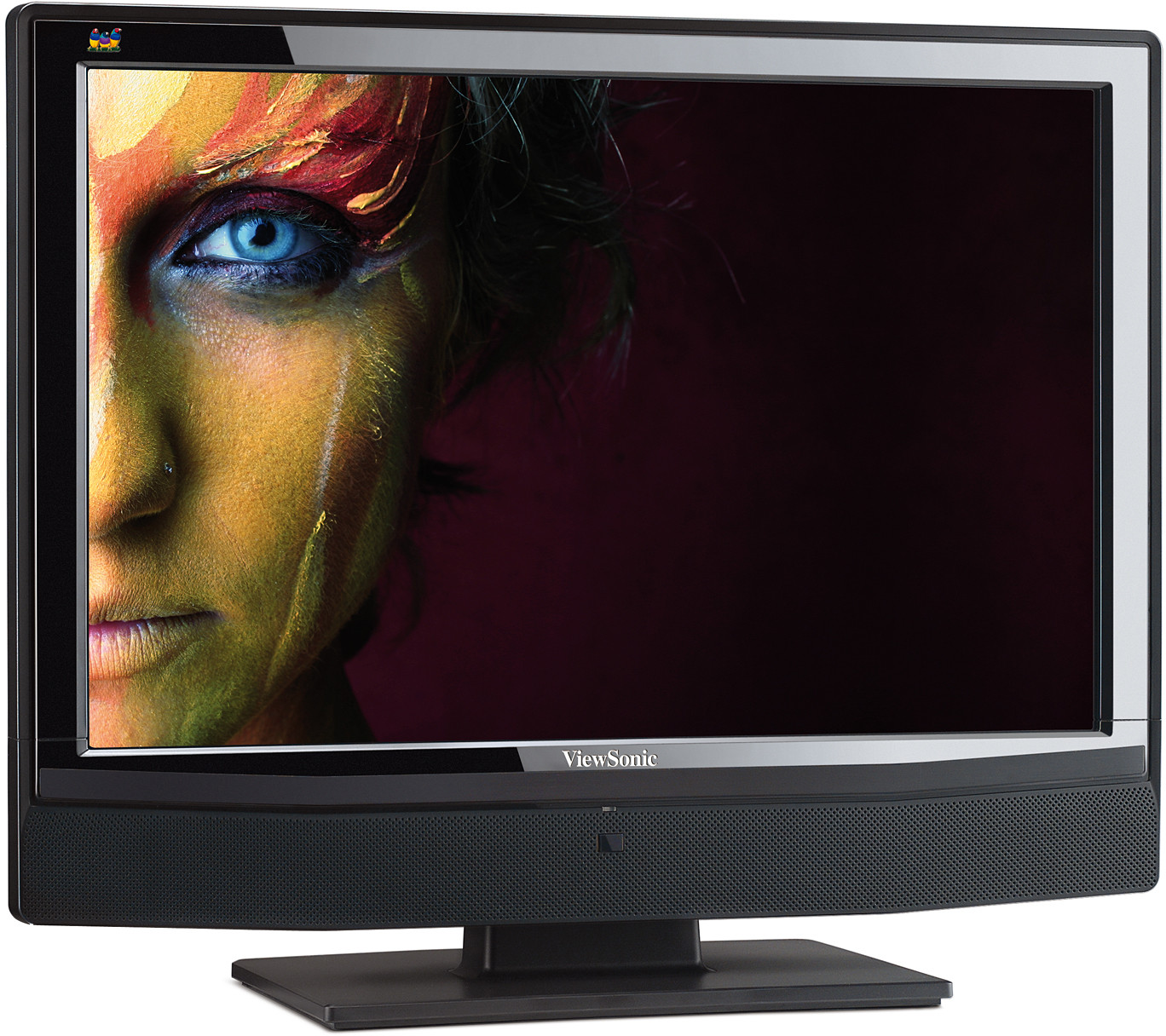

ViewSonic NX2240w 22" WIDESCREEN HIGH DEFINITION LCD TV

COLORS

Black

LCD

Typ:	22“ TN colour TFT active matrix WSXGA + LCD
Kontrastverhältnis:	1000:1 (typ.)
Betrachtungswinkel:	170° horizontal, 160° vertical (at 10:1)
Helligkeit:	300 cd/m² (typ.)
Anzeigefläche:	47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Reaktionszeit:	5ms (grey-to-grey)
Bildformat:	16:10
Panel-Oberfläche:	Anti-glare 3H

KOMPATIBILITäT

PC: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred

Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
ABMESSUNGEN

B x H x T: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging)
ZERTIFIKATE

CE, CB, GOST, SASO, WEEE, RoHS

LIEFERUMFANG

LCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)

AUDIO

Lautsprecher: 2 x 2 Watt

ANSCHLüSSE

Digital:	1 x HDMI
S-Video:	1 x 4-pin mini DIN jack
Kopfhörer:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART2 (CVBS, RGB, Audio)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub
Stromversorgung:	3-pin plug (CEE22)
Composite-Video:	1 x RCA (CVBS)
Component-Video:	Via 15-pin mini D-sub to 3 x RCA component video adapter

STROMVERSORGUNG

Spannung: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Verbrauch: <75 watt (max.)

BEDIENUNGSELEMENTE

Grundausstattung:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset)

BETRIEBSBEDINGUNGEN

Temperatur: 32-104ºF (0-40ºC)

Feuchtigkeit: 10% - 85% (non-condensation)
GEWICHT

Netto: 6.2kg (with base) 5.5kg (without base)

Brutto: 8.7kg
VIDEOTEXT

Yes (10 pages)
VIDEOEINGANG

PAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

PC:	Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®:	Power Mac™ up to 1680 x 1050 @ 60Hz preferred

Spannung:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Verbrauch:	<75 watt (max.)

Temperatur:	32-104ºF (0-40ºC)
Feuchtigkeit:	10% - 85% (non-condensation)

Netto:	6.2kg (with base) 5.5kg (without base)
Brutto:	8.7kg
