Key Features
  • 4,500 ANSI Lumens, offering clear images in any environment​
  • Up to 300" ultra large screen with lower cost-per-inch ​
  • Easy and flexible connection: dual HDMI ports, USB Type-A port​
  • Vivid colors with ViewSonic's SuperColor™ Technology​
  • Convenient software updates for projectors via USB connection

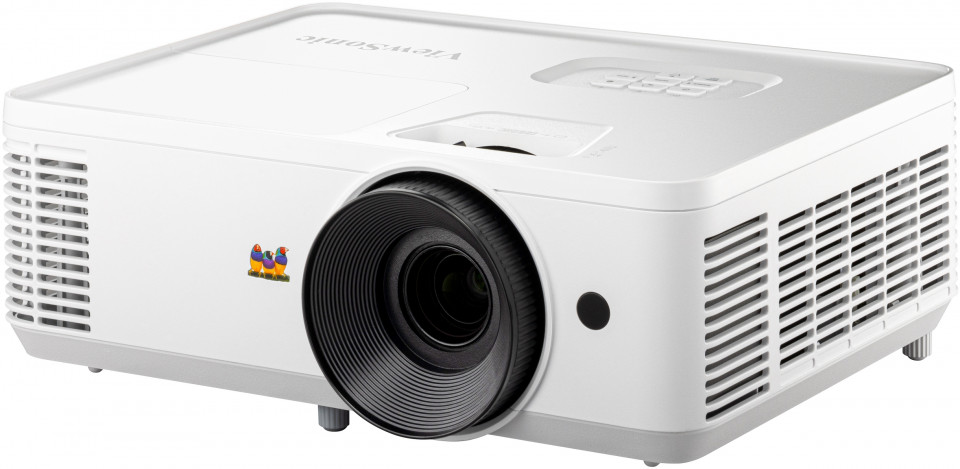

PA700S
Product Description
The PA700S is ViewSonic’s high brightness SVGA business/education projector. With 4,500 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. ​ ​

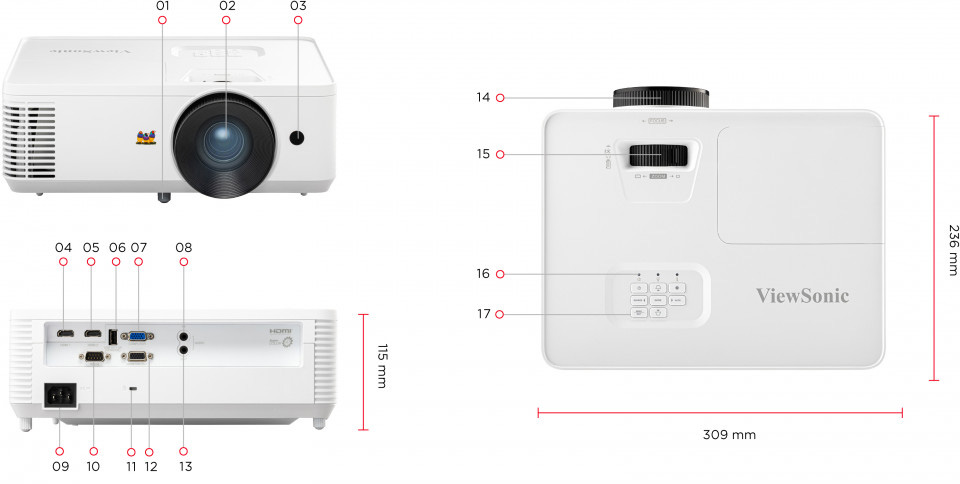

  1. Adjustment Foot
  2. Lens
  3. Front IR
  4. HDMI 1
  5. HDMI 2
  6. USB-A(5V/1.5A, Service)
  7. Computer In
  8. Audio In
  9. AC In
  10. R232
  11. Kensingtion Lock
  12. Monitor Out
  13. Audio Out
  14. Focus Ring
  15. Zoom Ring
  16. LED Indicator
  17. Keypad
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 800x600
    Brightness: 4500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12500:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lens: F=2.42-2.53, f=21.85-24.01mm
    Projection Offset: 130%+/-10%
    Throw Ratio: 1.94-2.16
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.18m-13.17m
    (100"@3.94m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 25dB
    Input Lag: 33.2ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 3W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 295W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.70kg
    Gross Weight: 3.80Kg
    Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
    Packing Dimensions: 400x337x168mm
    OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Air Filter: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-128
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
