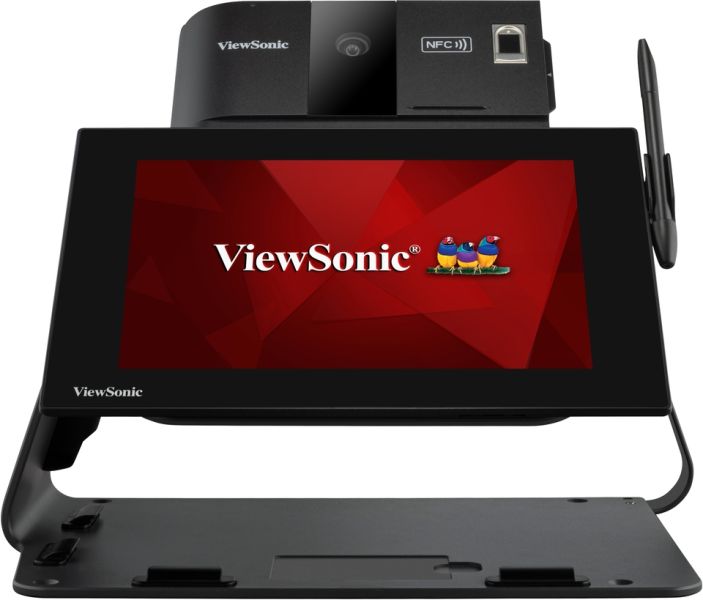

MA1014H
Multiple Authentication Processes in 1 Device
- All of your authentication tools in one device
- Easy integration with a single USB y-cable
- Modules tailored for specific industries
- Includes software development kit for easy integration
OVERVIEW

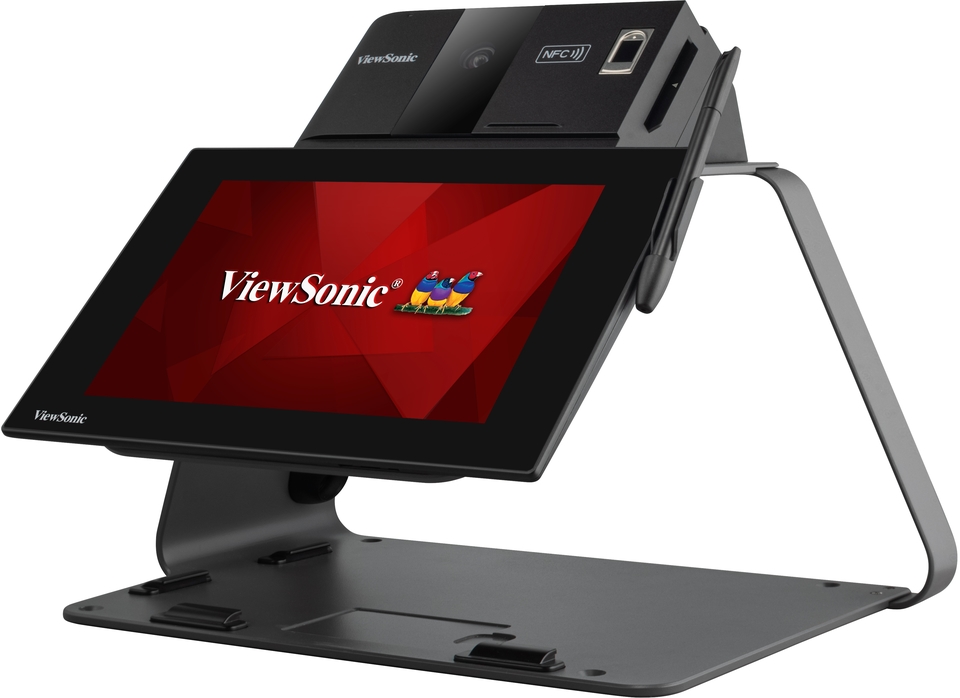

The ViewSonic MA1014H is an all-in-one authentication solution that incorporates multiple features in a single device. Users can be quickly and easily authenticated using the 3 card readers – NFC, integrated chip and magnetic stripe. The MA1014H also features a fingerprint scanner and signature authentication using both pen touch and finger touch - ensuring a secure and convenient authentication process, as it eliminates the need for users to remember passwords or use other authentication tokens. The two integrated cameras provide additional security and convenience. The MA1014 includes a document camera that captures high-quality images of documents, IDs or business cards. The front-facing camera lets users take a selfie video to verify their identity while using the machine. The ViewSonic MA1014H offers a comprehensive and efficient authentication solution that combines various features into a single device. With this all-in-one device, users can authenticate themselves using different methods and without the need for multiple devices, making it a convenient and practical solution for front-desk counters and customer service centers alike.Combines Authentication Features to Increase the Speed of Your Workflows

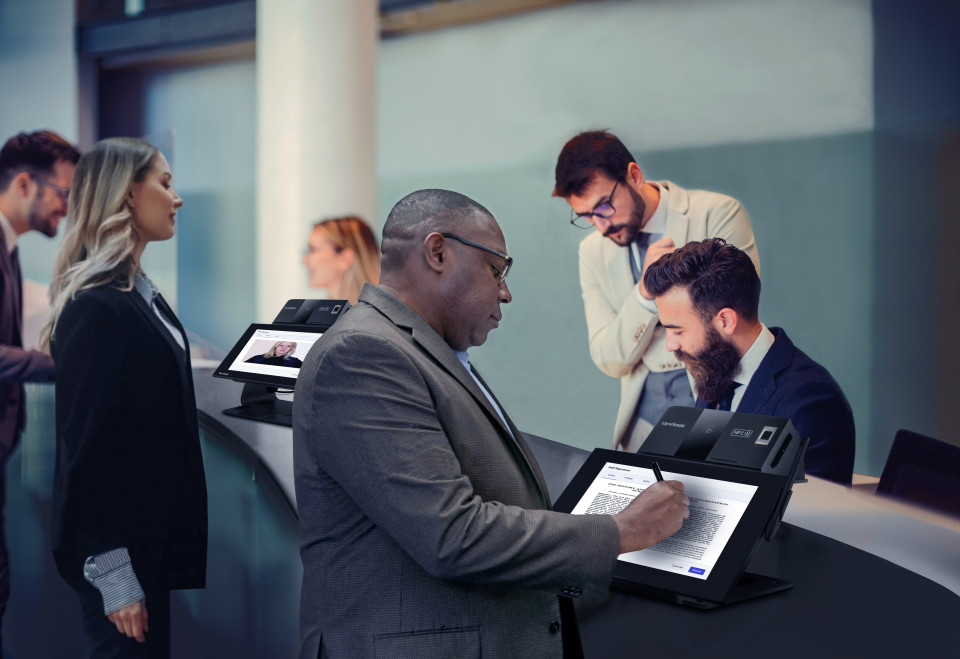

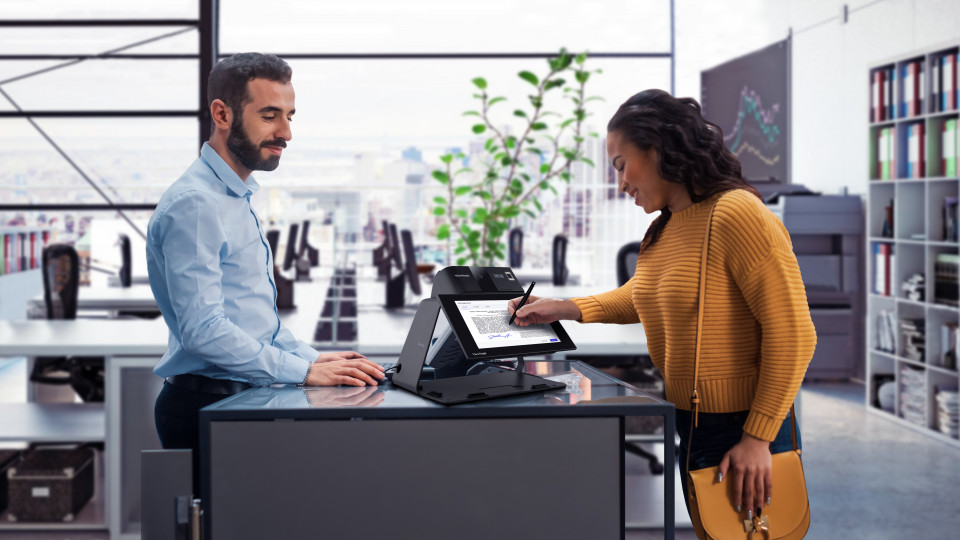

MA1014H Industry Application
Say goodbye to paper forms and signatures and hello to a faster, more secure, and satisfying customer experience. Using the MA1014H, customers can fill out profile and sign forms electronically, knowing that their data is protected by both hardware and software encryption. Once signed, documents are automatically sealed with a Certificate Authority, giving you and your client an extra layer of security. Plus, staff can save time on data entry and verification, which means even faster service for your customers.

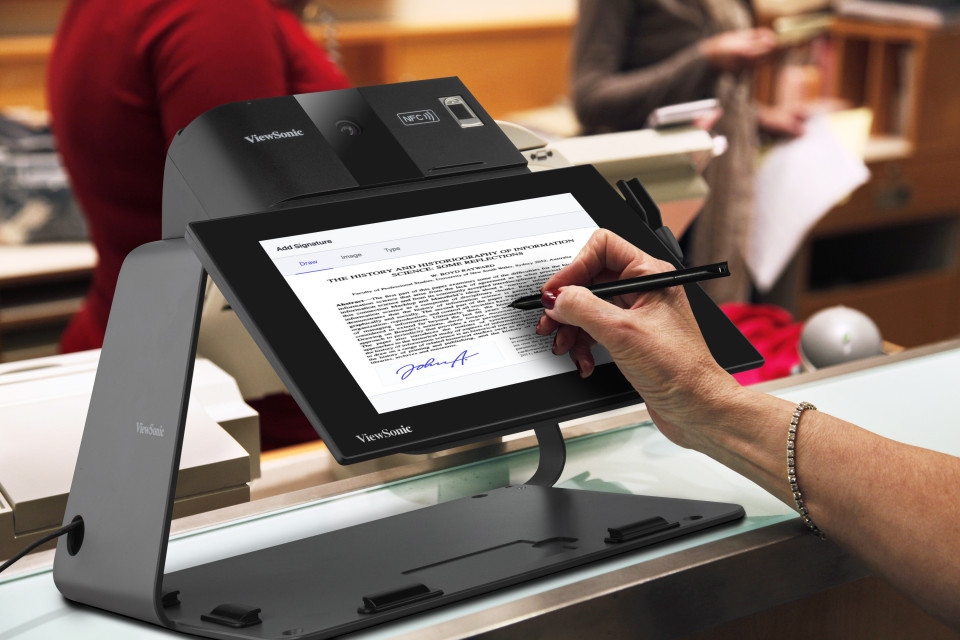

Secured Signature Shape, Pressure and Speed
Our intuitive and accurate pen reports 2048 levels of pen pressure, speed and shape data to validate each and every signature. The 250 pps response rate ensures delay-free writing and highlighting on the screen.
Finger Touch
Break free from the limitations of a mouse and enjoy the free-flowing precision of a pen. Also, combined with finger touch*. The MA1014H is fully harnesses the natural feeling of working with a pen in hand or finger.*Optional feature

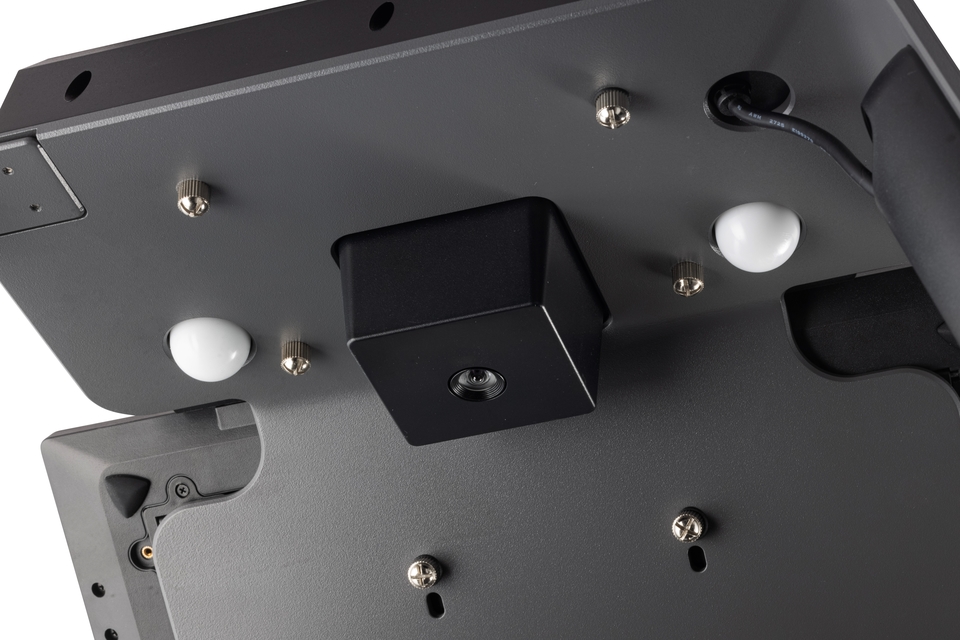

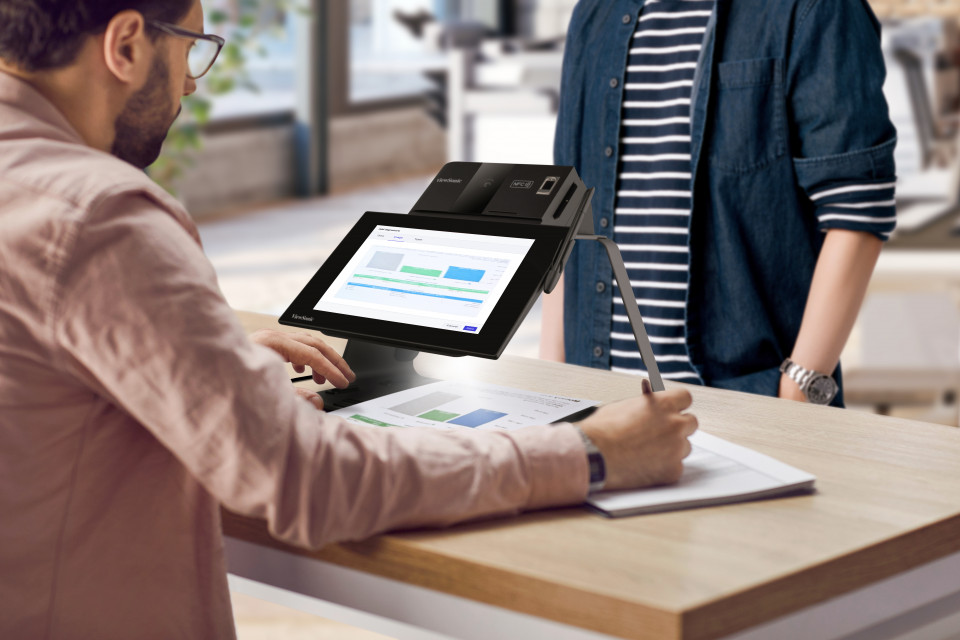

Document Camera
A document camera that can be used to scan high-quality images of documents, IDs or business cards or to automatically verify documents and forms.

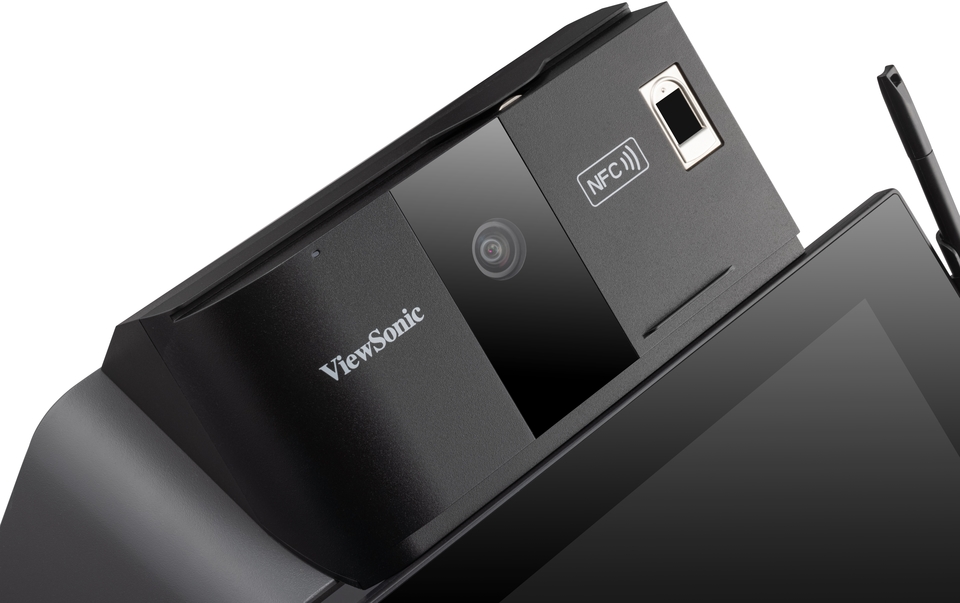

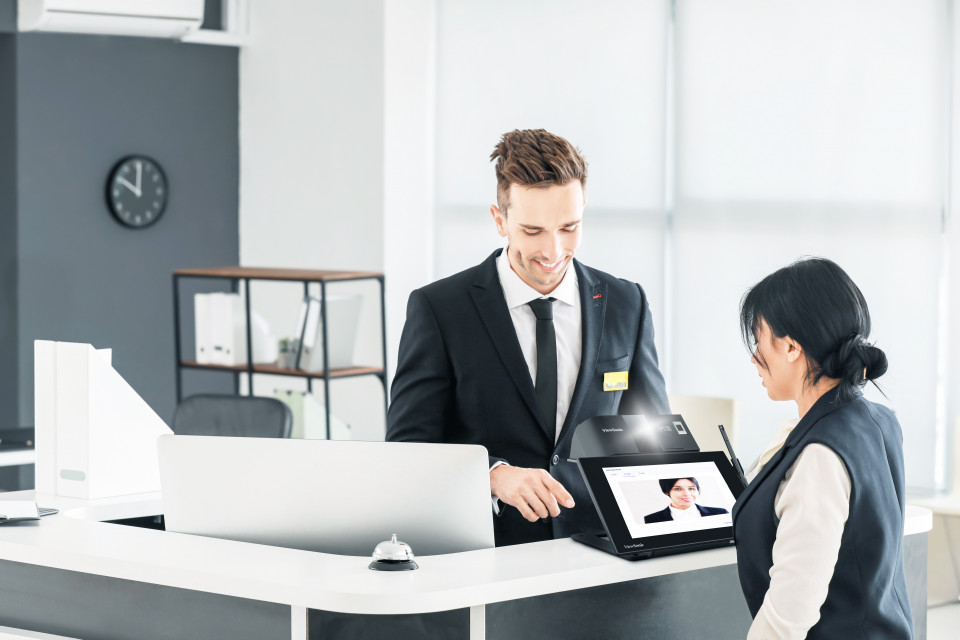

Front Camera
The front-facing camera video verifies customer identifies while using the machine, takes photos and records surroundings.

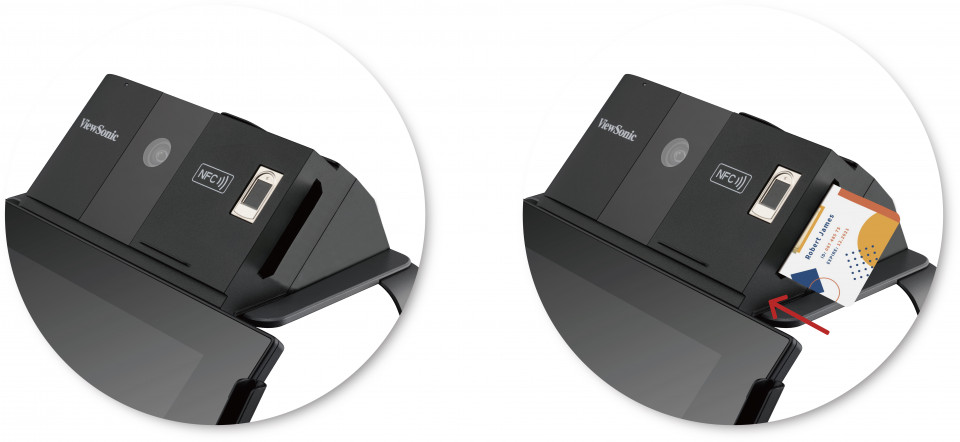

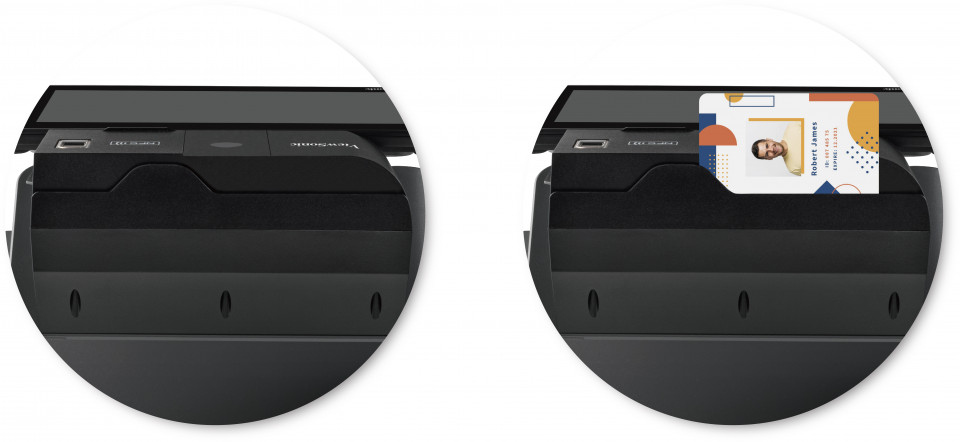

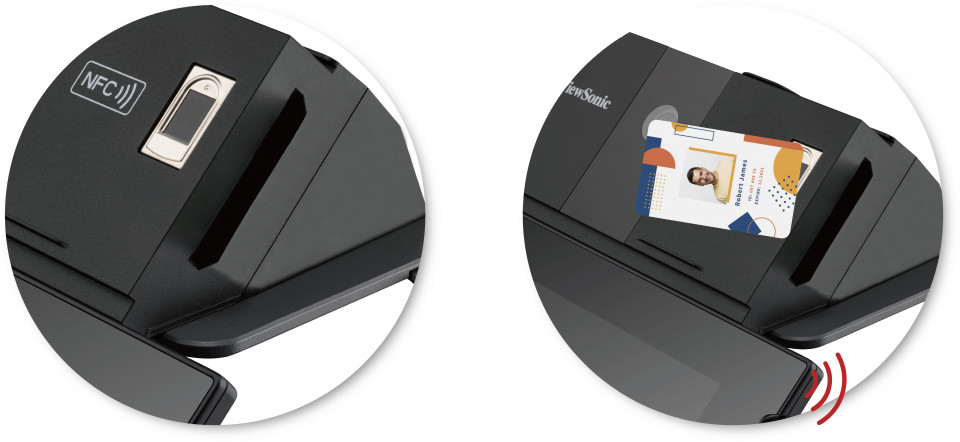

Contactless Card - NFC, Smart IC Card Reader, Magnetic Stripe
The useful NFC, Smart card and magnetic stripe readers detect cards and other devices for timekeeping, ID making or verification purposes.
SPECIFICATIONS
- LCD PANELDisplay Area : 216.96 x 135.6 mm (10.1" TFT LCD)
Optimum Resolution: 1280 x 800 pixels
Brightness: 200 cd/m2
Contrast Ratio: 800:1
Backlight: LED Light-Bar
Viewing Angles: H:170° V:170°
Panel Surface: Anti-Glare, Hard-Coating (8H) - CONNECTORUSB: USB2.0 x 1 by 2 IN 1 cable
Power: Adapter : 5V/2A by 2 IN 1 cable - ERGONOMICSTilt: +/-45 °
- COMPATIBILITYPC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request) - POWERVoltage: USB 5V
Consumption: 10.47W(Typ.)/ 11.51W (Max.) - OPERATING CONDITIONSTemperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-Condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 377.0 X 303.0 X 292.0 mm
Box (in / mm): 445.0 X 380.0 X 385.0 mm - WEIGHTNet (lb / kg): 3.7 kg
Gross (lb / kg): 5.4 kg - REGULATIONSCE/ CB/ BSMI/ FCC
- WHAT'S IN THE BOX1. PD1013 Pen Display x 1
2. USB 2.0, 2 in 1 Y-cable x 1
3. EMP-001 Pen x 1
4. Replacement Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power Adapter 5V/2A x 1
9. Quick Start Guide x 1
10. Assistant Stand x 1
11. Multi-Authentication Hub x 1 - Optional SpecDocument Camera: 16M 106 degree wide angle
Front Camera: 5M 118 degree wide angle
NFC: ˙Supports ISO/IEC 14443A reader/writer up tp 847Kbit/s
˙Supports ISO/IEC 14443B reader/writer up tp 847Kbit/s
Fingerprint: Supports USB1.1/2.0, 256 * 288 pixel, 500 dpi
Smart Card Reader: Durable landing-typed Smart Card connector
· Comply with ISO 7816-4 T=0 and T=1 approval，EMV L1
· Communicaton speed:Up to 115，200 bps
Magnetic Stripe Reader: Supports ISO 7811，AAMVA，CADMV
