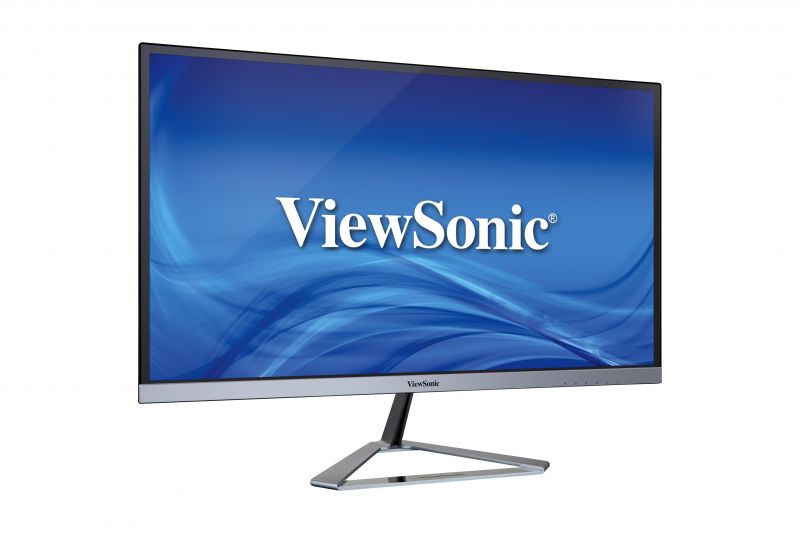

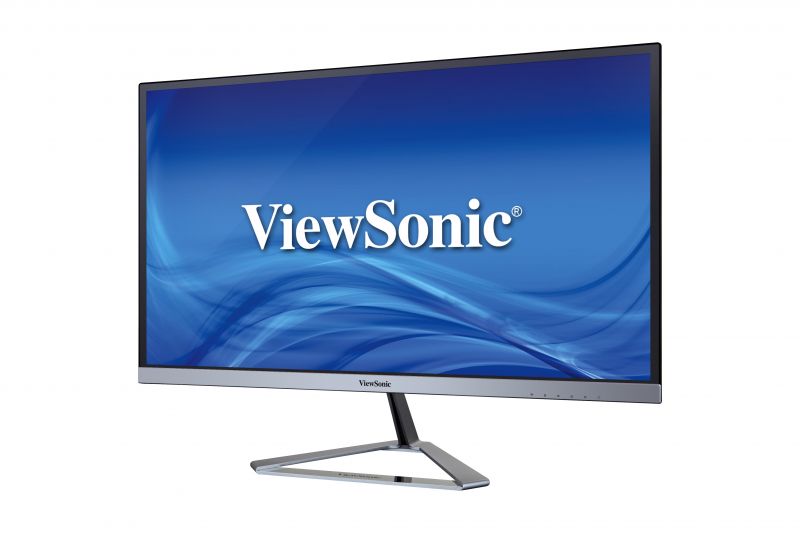

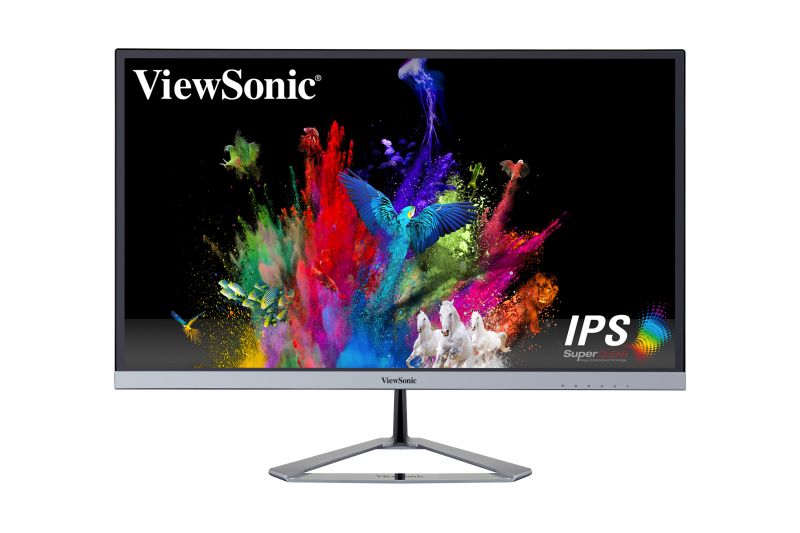

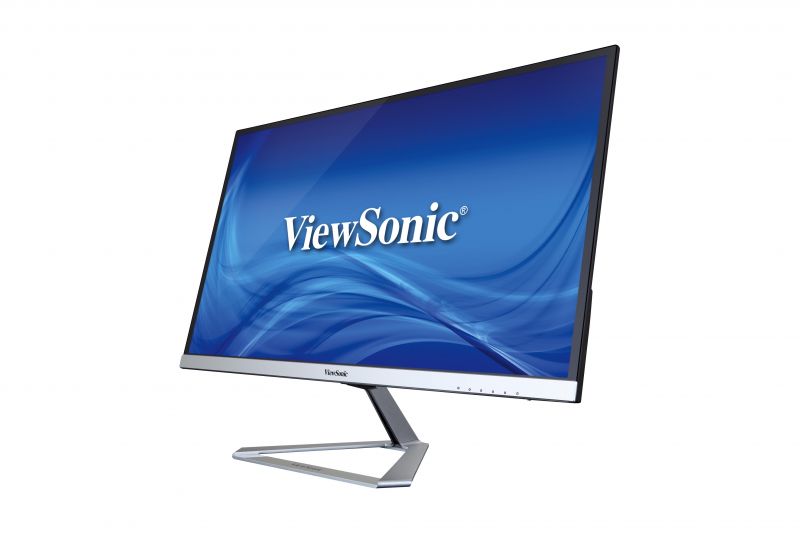

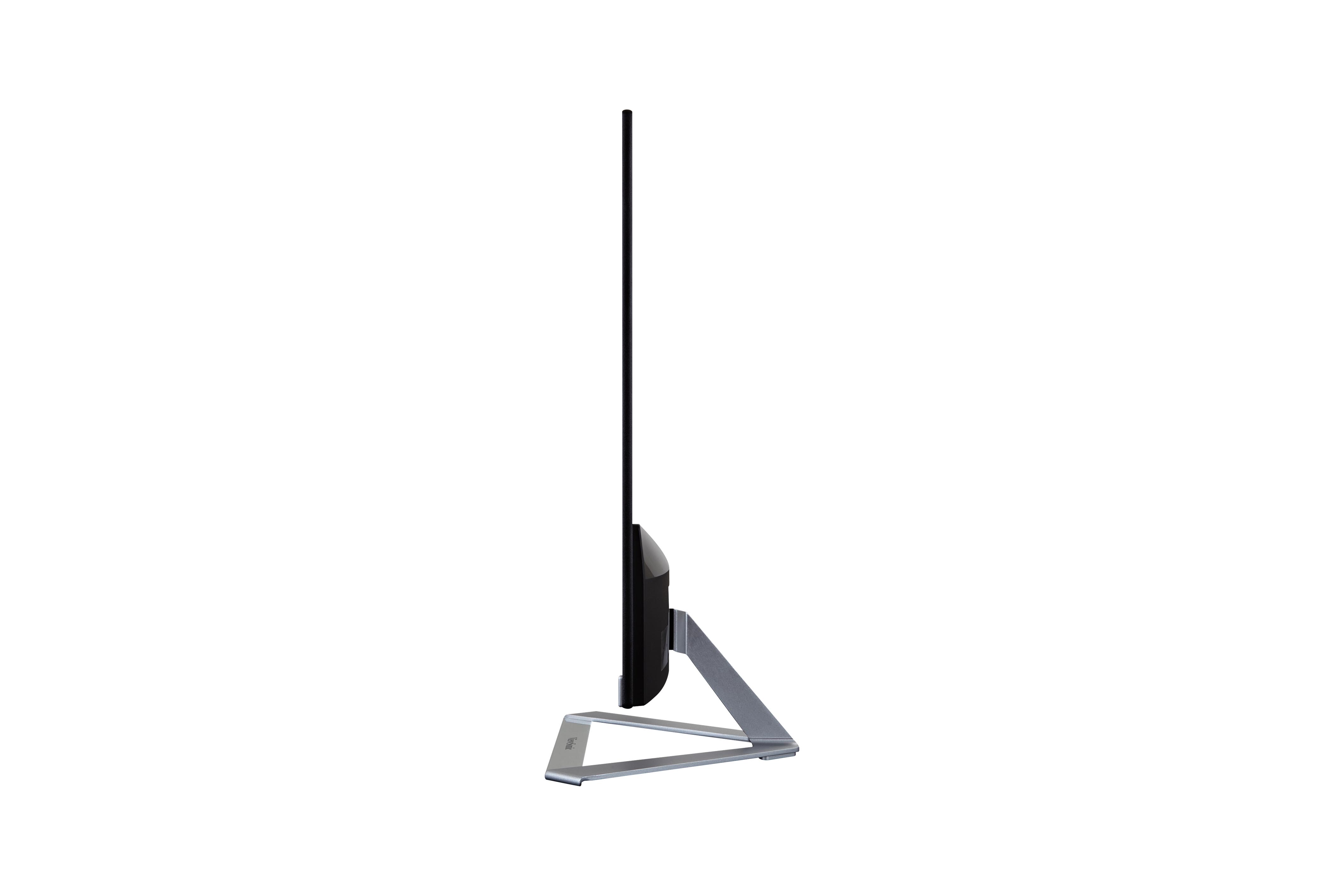

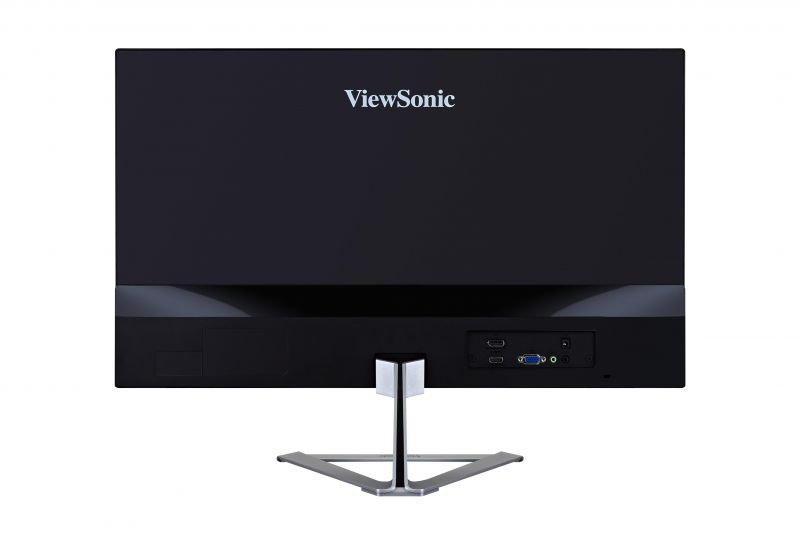

VX2276-shd
22" Entertainment Monitor
- SuperClear® IPS technology

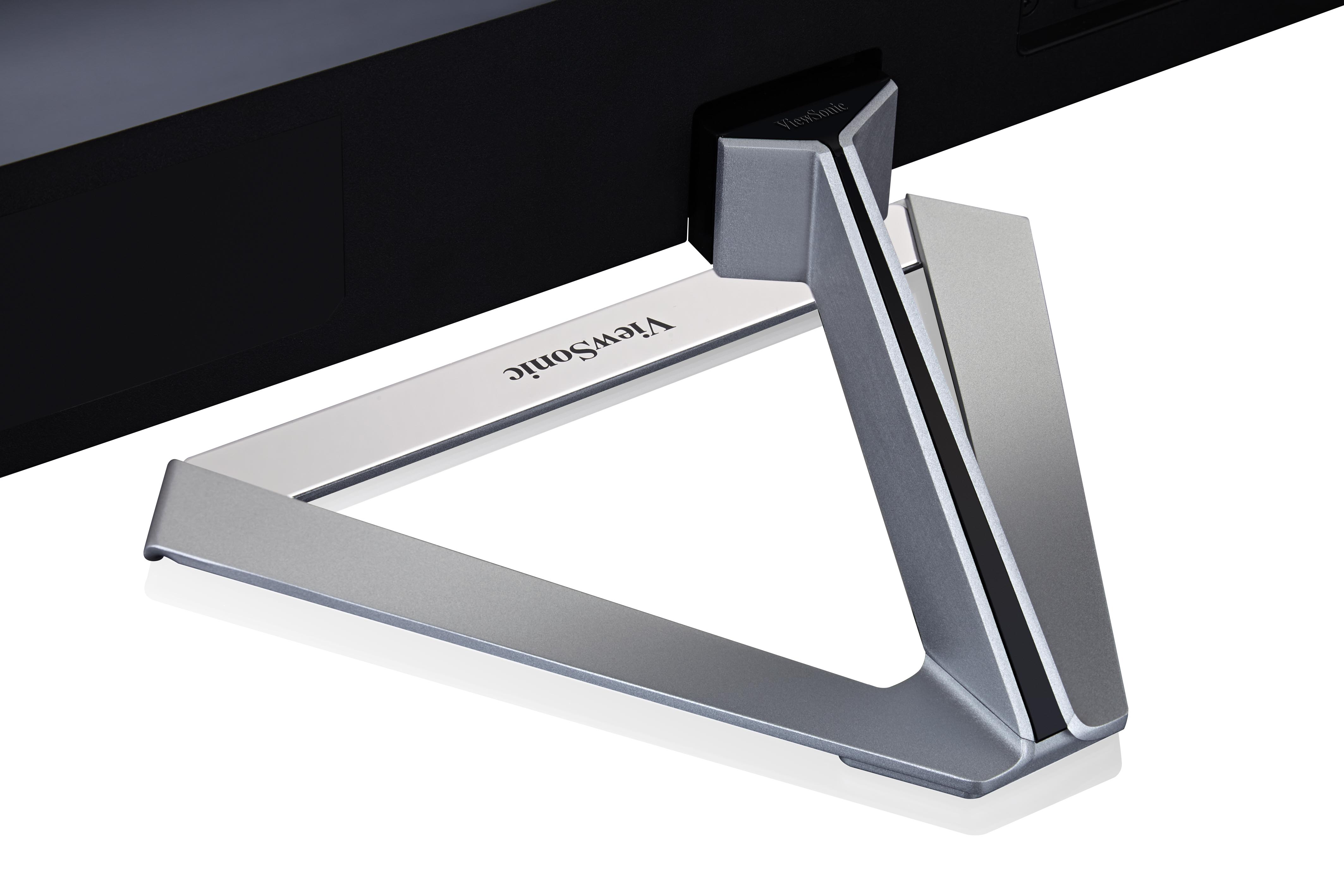

- Frameless bezel and metallic triangle stand
- Full HD 1080p resolution
- Flicker-Free and Blue Light Filter
- HDMI and VGA input
OVERVIEW
The ViewSonic® VX2276-shd is a 22” Full HD LCD monitor designed for both office and home use. With SuperClear® IPS Panel technology, this monitor offers best-in-class screen performance with ultra-wide viewing angles. Vivid 1920x1080 resolution combined with a sleek edge to edge frameless design, deliver an immersive viewing experience for home entertainment and multimedia applications. What’s more, the minimalistic design of this monitor makes it perfect for nearly seamless multi-screen setups. HDMI and VGA inputs deliver flexible connectivity options for both computing and gaming environments, while ViewSonic’s exclusive ViewMode feature provides intuitive presets for optimised screen performance in different applications. In addition, Flicker-Free technology,Blue Light Filter, and Low EMI help to minimise eye strain from extended viewing periods. With ViewSonic’s industry-leading 3-year limited warranty, this monitor is a solid long-term investment for enterprise and home applications.SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 14W
Eco Mode (optimized): 16W
Consumption (typical): 18W
Consumption (max): 20W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Input SignalFrequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -5º / 17º
- Weight (imperial)Net (lbs): 5.4
Net Without Stand (lbs): 4.4
Gross (lbs): 8.6 - Weight (metric) Net (kg): 2.4
Net Without Stand (kg): 2
Gross (kg): 3.9 - Dimensions (imperial) (wxhxd)Packaging (in.): 22.2 x 15 x 4.5
Physical (in.): 19.6 x 15.5 x 8.2
Physical Without Stand (in.): 19.6 x 11.9 x 1.3 - Dimensions (metric) (wxhxd)Packaging (mm): 563 x 382 x 115
Physical (mm): 498 x 393 x 209
Physical Without Stand (mm): 498 x 302 x 33 - GeneralPACKAGE CONTENTS: VX2276-SHD x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
